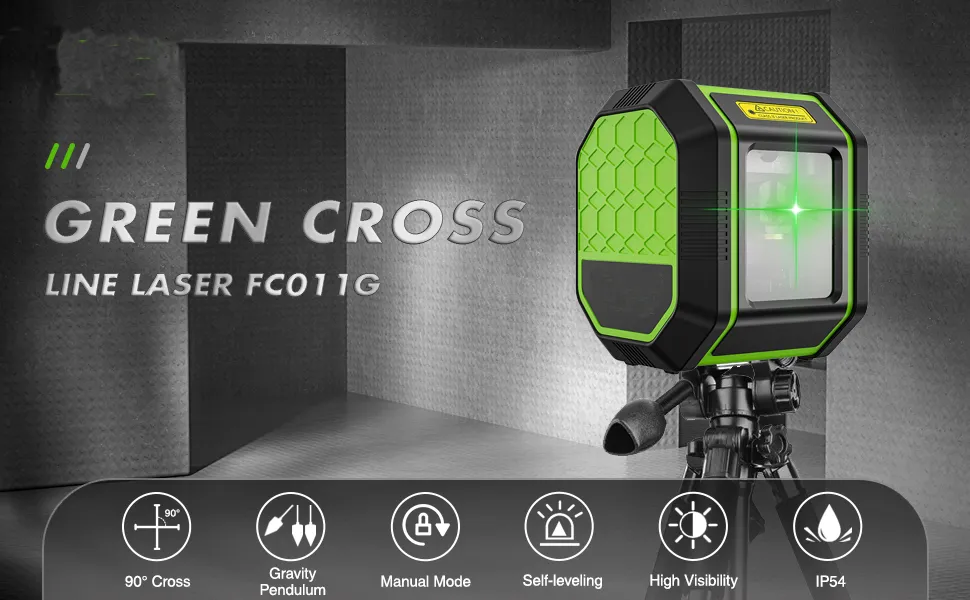

2 Lines Green Line Lithium Battery Laser Level FC011G New Releasing
Diversity Transportation
Air Freight, Sea Freight, And Express Delivery
Personalized Products
Product customization
Technical Support
24-Hour Quick Reply
Multiple Certifications
CE, RHOS, FC, ISO, etc
Description
Our heavy investment in the product R&D has finally paid off. ZHONGSHAN SMART OPTOELECTRONICS TECHNOLOGY CO.,LTD has successfully rolled out a new product series, namely 2 Lines Green Line Lithium Battery Laser Level FC011G. It is totally unique in several aspects including its appearance, features, and applications. ZHONGSHAN SMART OPTOELECTRONICS TECHNOLOGY CO.,LTD offers a high standard of service together with being competitively priced. We strictly stick to the concept of scientific design, which contributes to the unique appearance and easy-to-use performance of our Laser Level , Laser Distance Meter , Power Tool , Cordless Tool , Airless Paint Sprayer,Rotary Laser Level , Surveying Instrument etc.... Also, we never use inferior raw materials and ensure they are all tested by our QC inspectors, thereby, guaranteeing Laser Levels quality. We believe that our product with so many advantages can bring benefits to all customers.
Warranty: | 2 years | Dot Numbers: | 0 |
Customized support: | OEM, ODM | Place of Origin: | China |
Brand Name: | XiaoSmart | Model Number: | FC011G |
Size: | 28.5x12x20.5cm | Precision: | ±2mm/10m |
Wavelength: | 520±10NM | Laser: | Germany OSRAM |
Laser class: | Class 2 | Type: | 4V1H(360°) |
Self-leveling range: | 4°±1° | Beam source: | 520±10NM |
Working distance: | 25m,≥50m with detector | Certification: | EMC,FCC,ROHS,CE |

Laser Wavelength::505-520mm
Leveling Accuracy:±2mm/10m
Leveling/Compensation Range:±4°
Self-Leveling Time:<3″
Reference Working Distance(100lux):30m
Reference Operating Time :>5h
Power Source: 3.7V/1400mAH Built-in Lithium Battery
Charging Port:Type-CPower Adapter: 5V1A
Charging Time:About 5 Hours
Female Thread Size:1/4"-20
IP Rating :IP54
Operation Temperature Range:-10℃一50℃
Storage Temperature Range:-10℃一50℃
Superior Visibility
This cross-line laser level is compact and lightweight for easy gripping, it is the most handy and professional laser tool you can think of to carry out work.

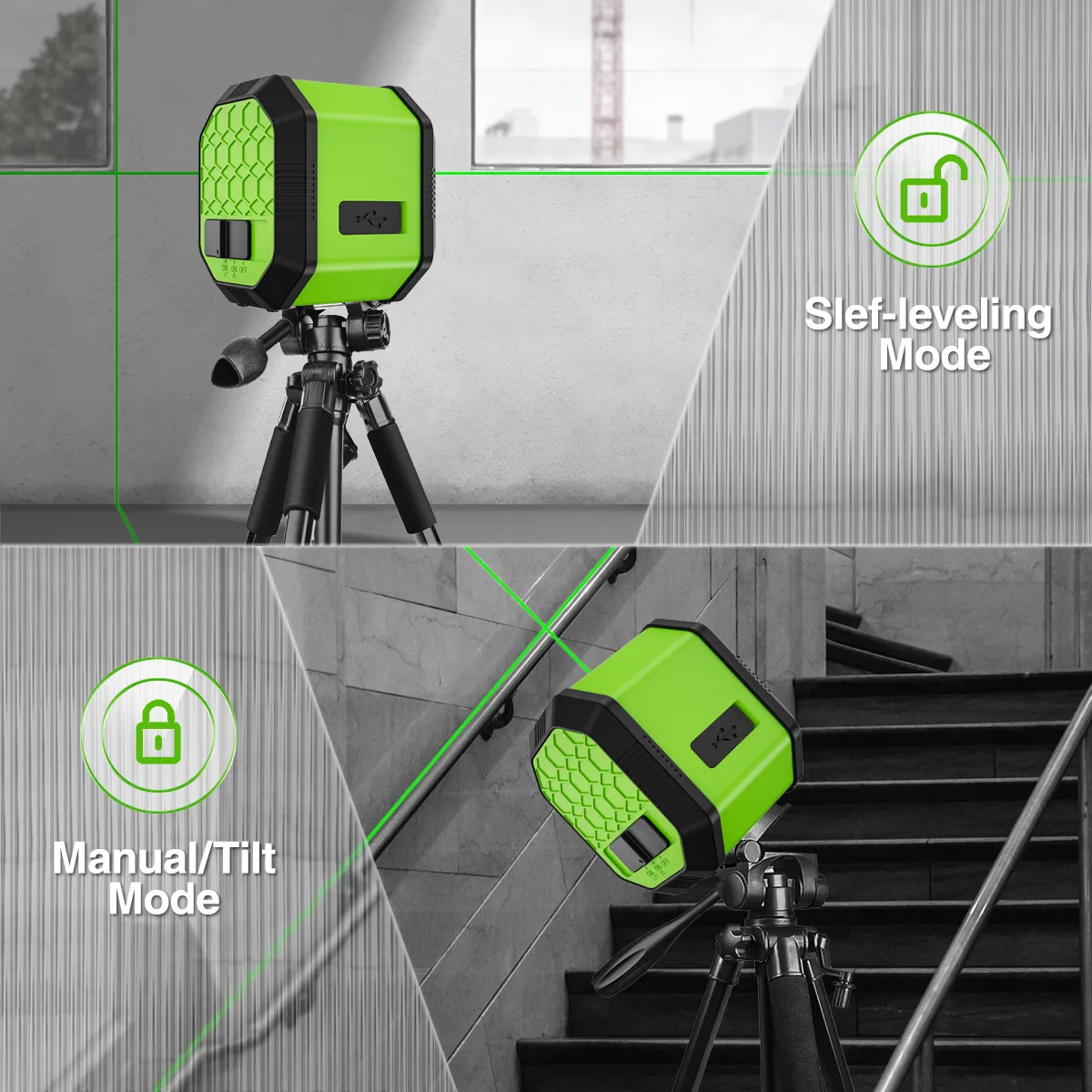

Self-leveling mode & Manual mode
Self-leveling mode:
When the laser tool is switched to the unlocked position, self-leveling mode is on.
The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum lock is in locked position, you can place the laser tool at various angles to have non-level straight lines.
The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

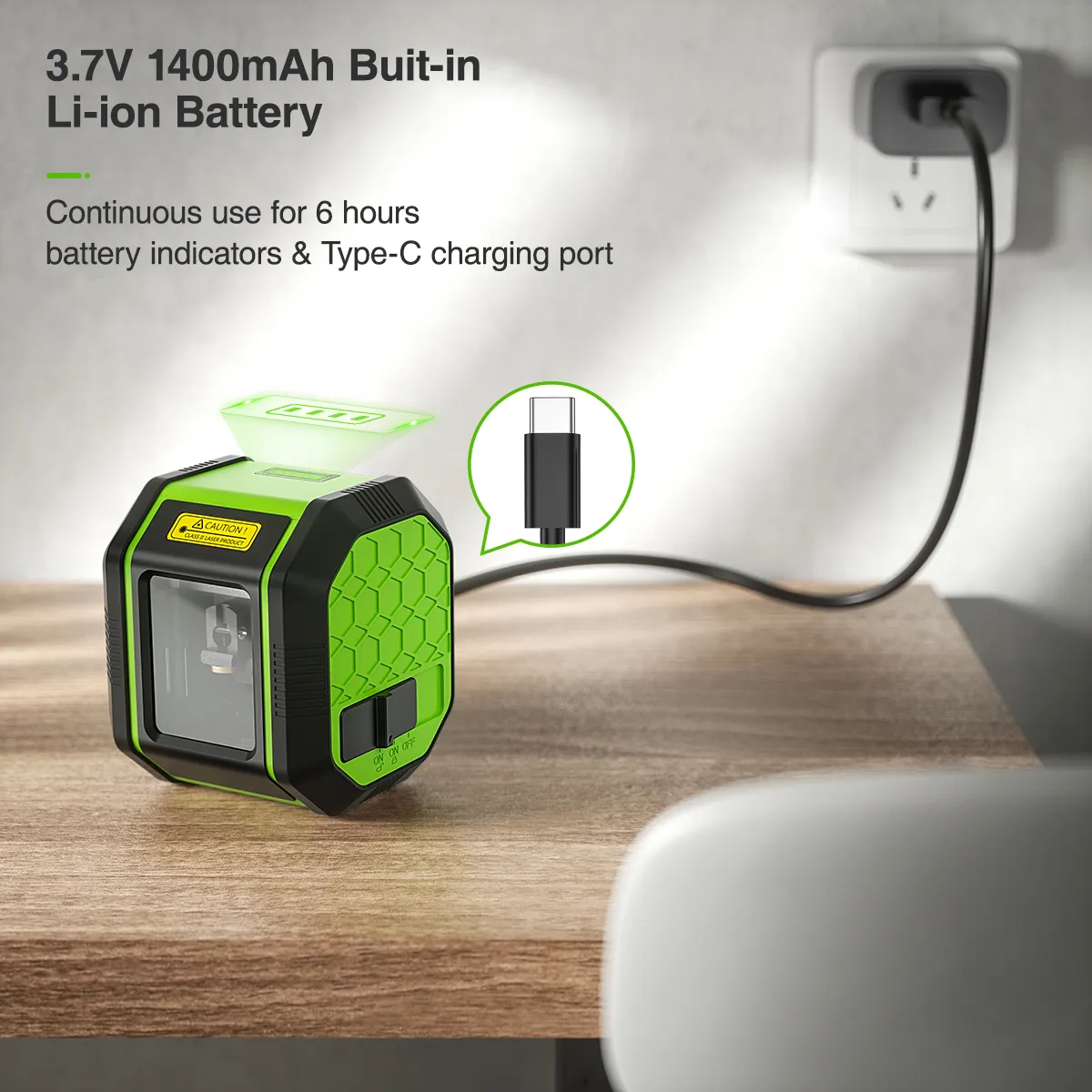

Battery Indicator & Type-C Charging Port
The 4 battery indicators allow users to know the current battery volume and charging protection helps prevent from overcharging.
With Type-C charging port, user can charge the laser level by laptop, power bank, car charger, etc.

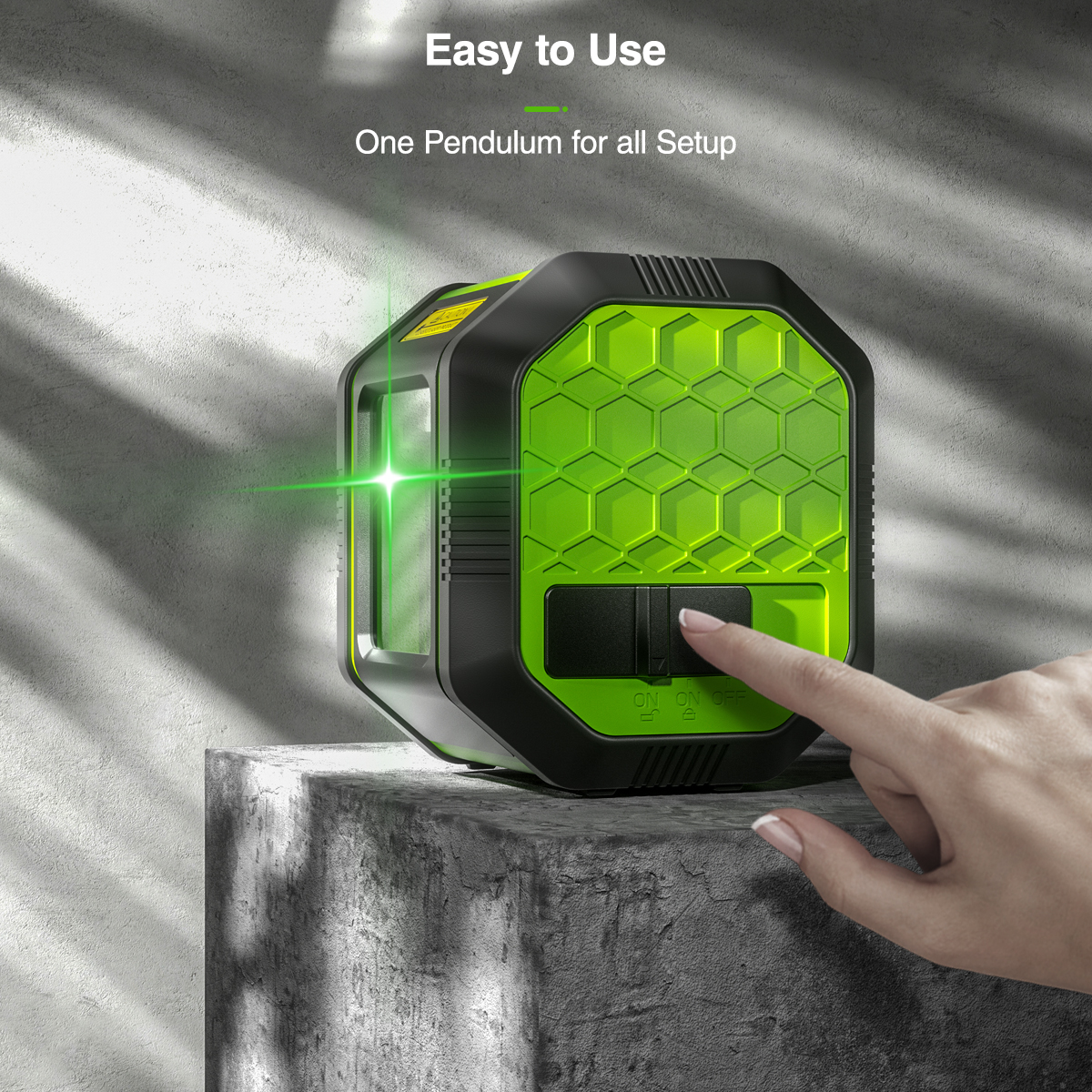

Easy Operation
It is simple to use with only one operation switch, which is easy to switch modes and ensure fast and error-free work, making your life more efficient and simple.

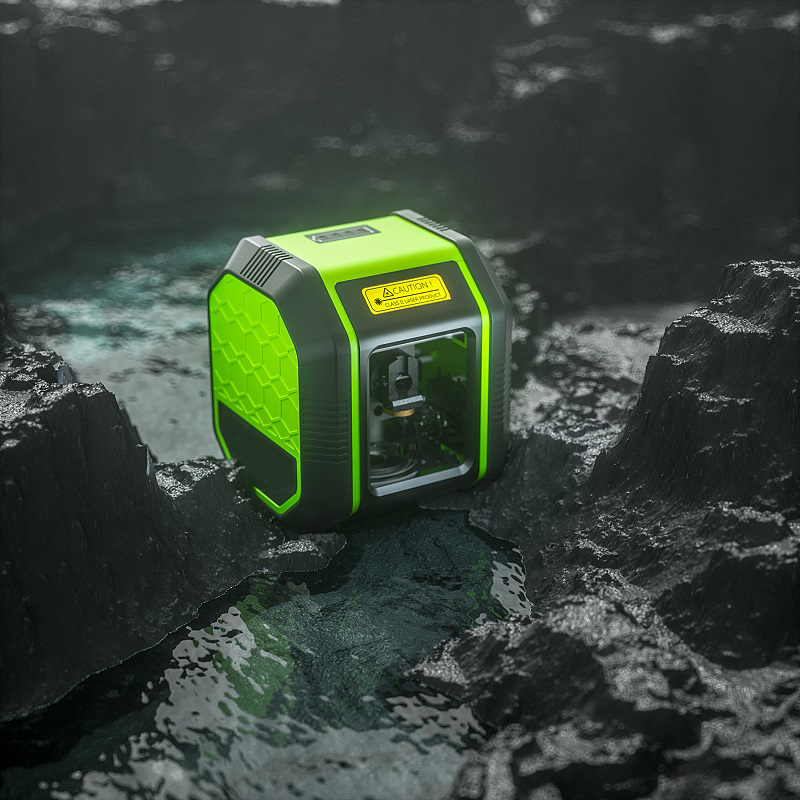

Durable Laser Tool
This self-leveling line laser reaches IP54 protection grade, it is waterproof, dustproof, shockproof, wear resistant, impact resistance, cold and high temperature.
This cross-line laser level is compact and lightweight for easy gripping, it is the most handy and professional laser tool you can think of to carry out work.
