Description
ZhongShan XiaoSmart OPTOELECTRONICS TECHNOLOGY CO.,LTD using unique innovative thinking and strong innovation capabilities, we have developed new products with cross-age significance. Close to Top The launch of a product that perfectly solves the industry's pain points is that ZhongShan XiaoSmart OPTOELECTRONICS TECHNOLOGY CO.,LTD has always adhered to the goal of technological innovation, and the newly developed products perfectly solve the pain points that have been lingering in the industry for a long time. Once launched, they have been enthusiastically sought after by the market.
| Warranty: | 2 years | Dot Numbers: | 0 |
| Customized support: | OEM, ODM | Place of Origin: | China |
| Brand Name: | XiaoSmart | Model Number: | P03DG |
| Size: | 20cm | Precision: | ±3mm/10m |
| Wavelength: | 510-530nm | Working time: | around 9 hour |
| Working temperature: | OSRAM/Green | Charging time: | 3.5 hours |
| Leveling time: | 3 seconds | Working distance: | ≥40m, ≥80m with detector |
Product Description
P03DG 12 Lines 3D Green Laser Level Specifications:
● Laser Beam: Green Beam ● Projection: 12 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Germany Osram 510nm-530nm
● Horizontal / Vertical Accuracy: ±3mm/10m, ±1/13 in. at 33 ft
● Leveling / Compensation Range: 3.5°±1°
● Leveling Time: ≤3s
● Working Distance: ≥40m, ≥80m with detector
●Working Time: About 9 hours with li-ion battery,
● Power Source: 10.8V / 2600mAh Li-ion battery
● Mount Size: 1/4''-20 & 5/8''-11
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Germany Osram 510nm-530nm
● Horizontal / Vertical Accuracy: ±3mm/10m, ±1/13 in. at 33 ft
● Leveling / Compensation Range: 3.5°±1°
● Leveling Time: ≤3s
● Working Distance: ≥40m, ≥80m with detector
●Working Time: About 9 hours with li-ion battery,
● Power Source: 10.8V / 2600mAh Li-ion battery
● Mount Size: 1/4''-20 & 5/8''-11
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃

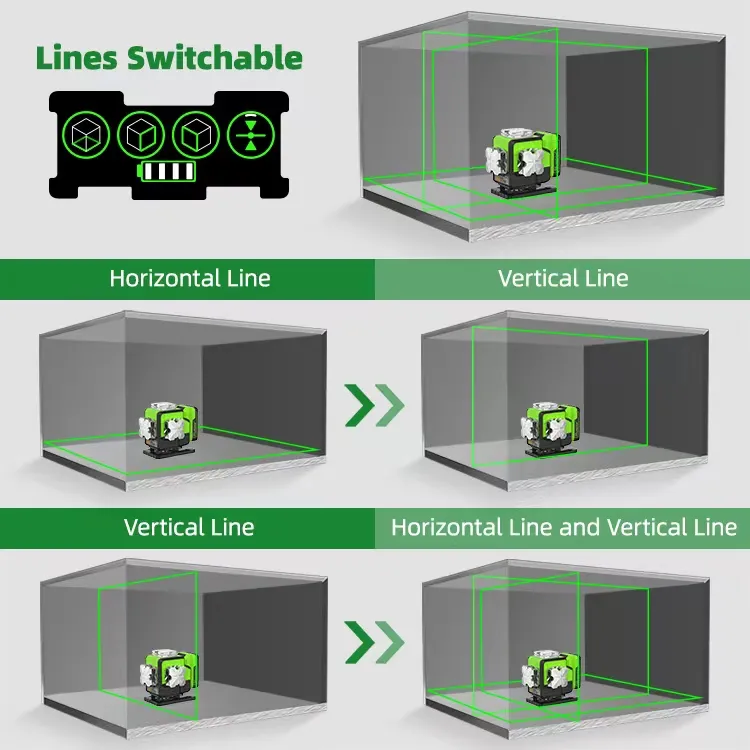

Line Switching:
Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
The laser lines can be selected separately according to job requirements.
The laser lines can be selected separately according to job requirements.

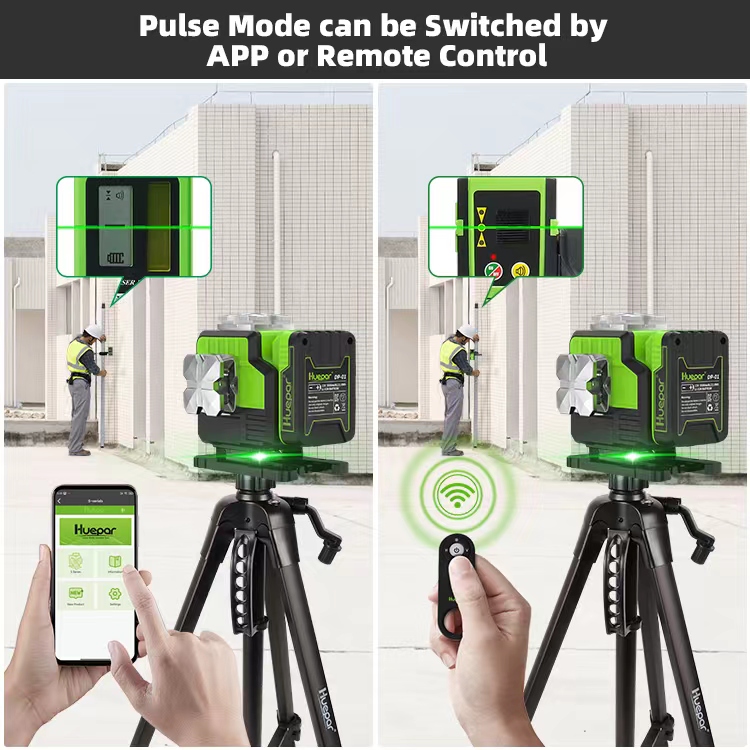

Pulse Mode:
Turn ON pulse mode: Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode. Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Line Laser Receiver. It is compatible with LR-6RG&LR-5RG Line Laser Receiver only.

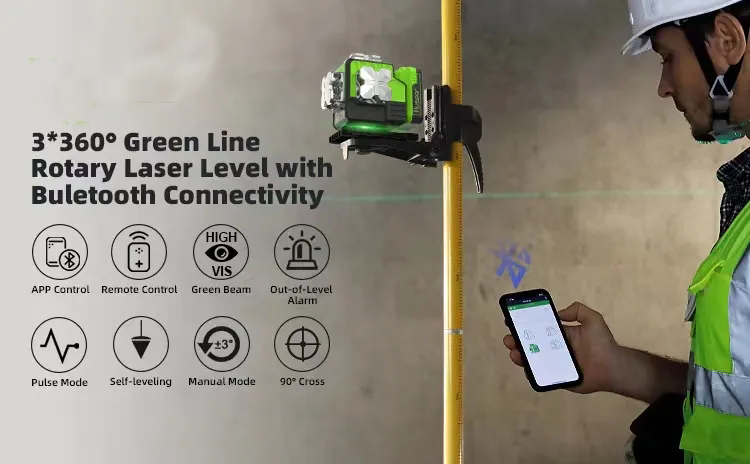

Multifunctional laser tool
Laser Level have one horizontal 360° plane, two vertical 360° planes, 12 laser lines, which can cover the floor, walls and ceiling all around the room. Horizontal lines and vertical lines cross at 90°angles help you to visualize quickly and finish square layout. Each button on this laser level corresponds to a single laser line, you can easily choose to turn on/off any laser line.

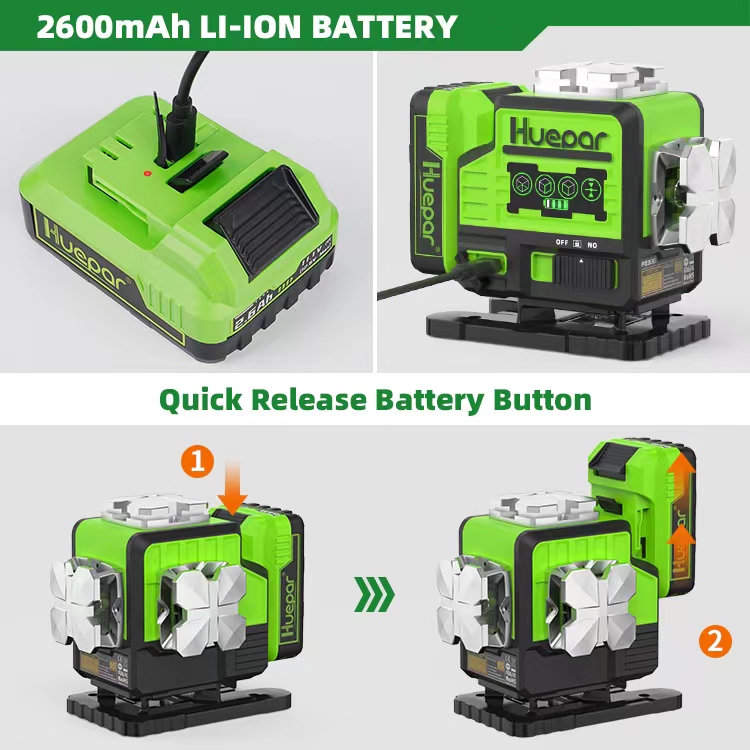

Quick Release Battery Button
2600mAh Li-ion battery quick release battery button,battery power display

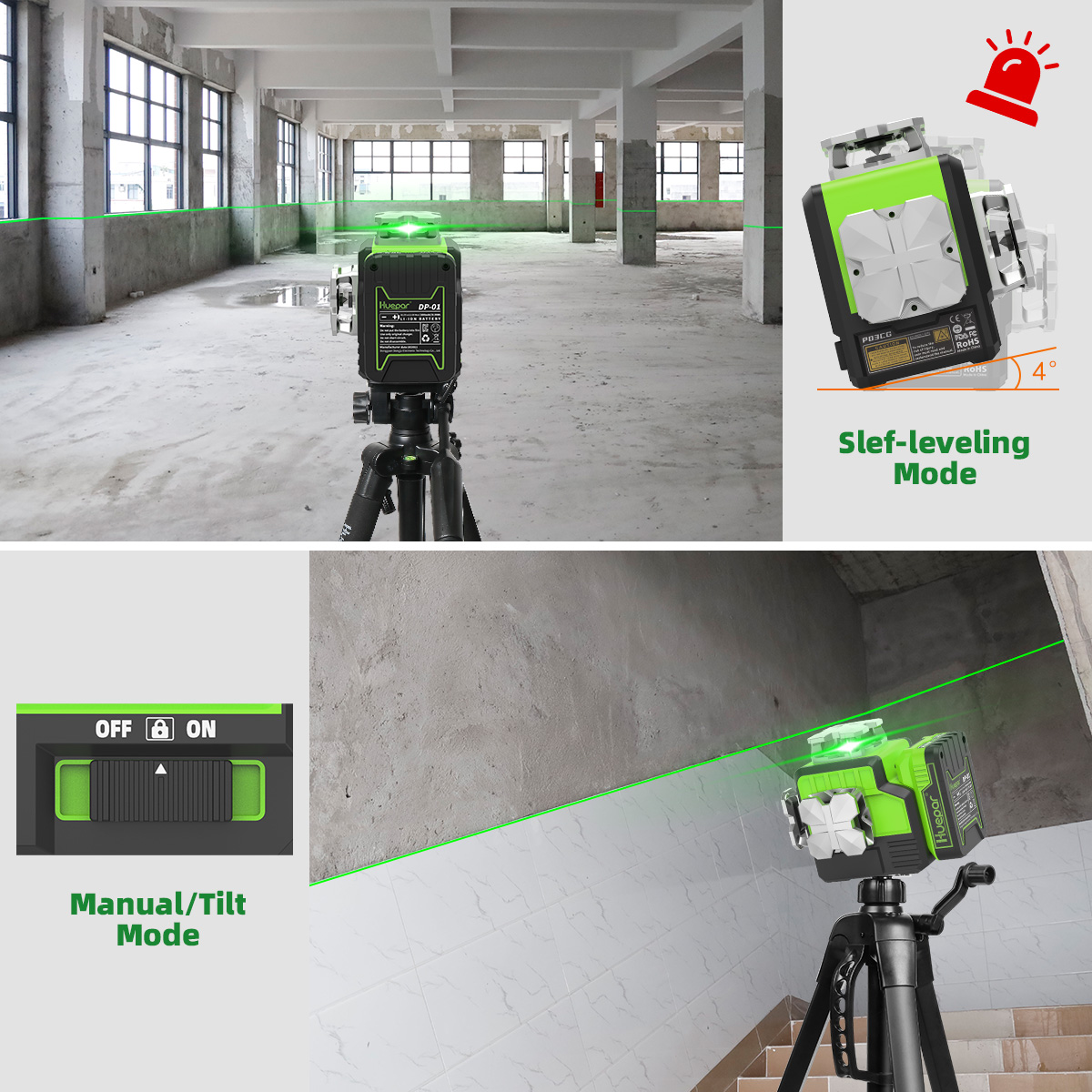

Self-leveling mode:
Once the pendulum unlocked, self-leveling mode is enabled.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
