Product Description

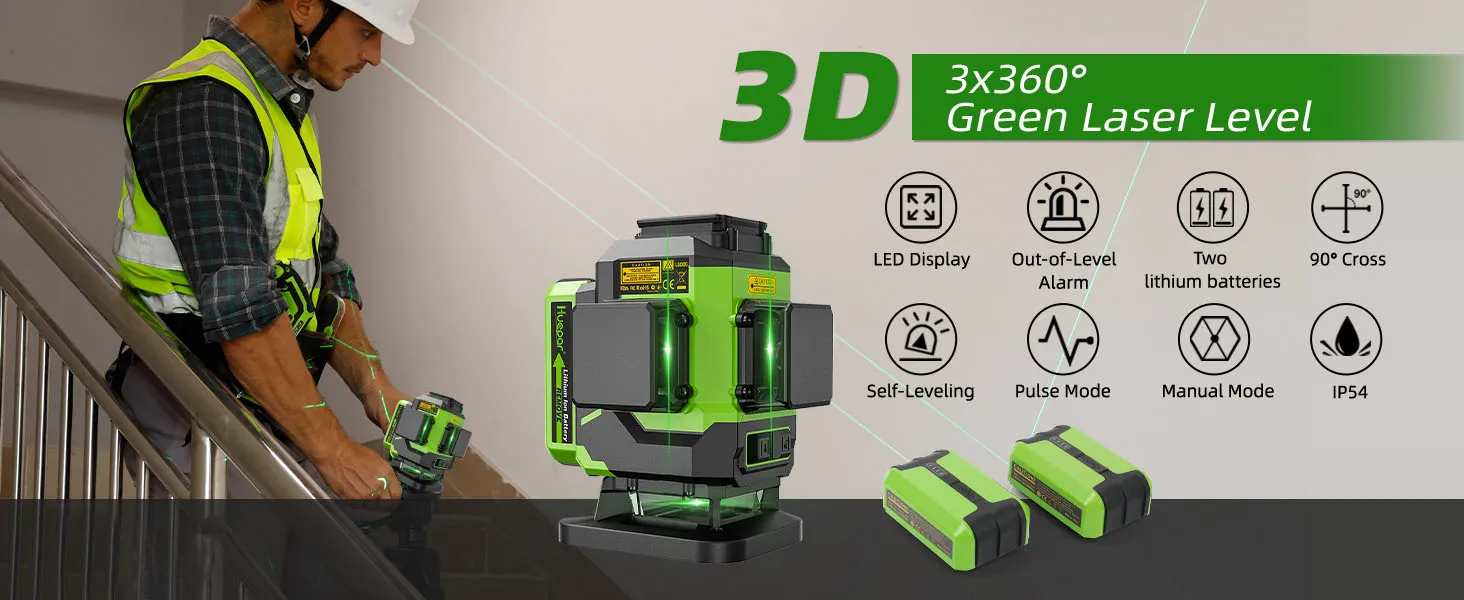

LS03DG 3 x 360 Green Beam Floor Laser Level Specifications:



Projection: 3 x 360° Green Beam Floor Laser Lines

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Laser Wavelength: 505-520nm

Horizontal/Vertical Accuracy: ±1/9in at 33ft (±3mm/10m)

Leveling/Compensation Range: ±4°

Leveling Time: 3s

Working Distance: 95 feet(30m) (300 LUX), 197 feet(60m) with Laser Detector LR-5RG / LR-6RG

Operating Time: 8 hours continual use with all laser beams on

Power Source: Two 3.7V / 5200mAh Li-ion Battery

Mount Size: 1/4"-20

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

Operation Temperature Range: Between -10℃ and +50℃

Storage Temperature Range: Between -20℃ and +70℃

WARNING: Avoid direct exposure of the laser beam to the eyes.

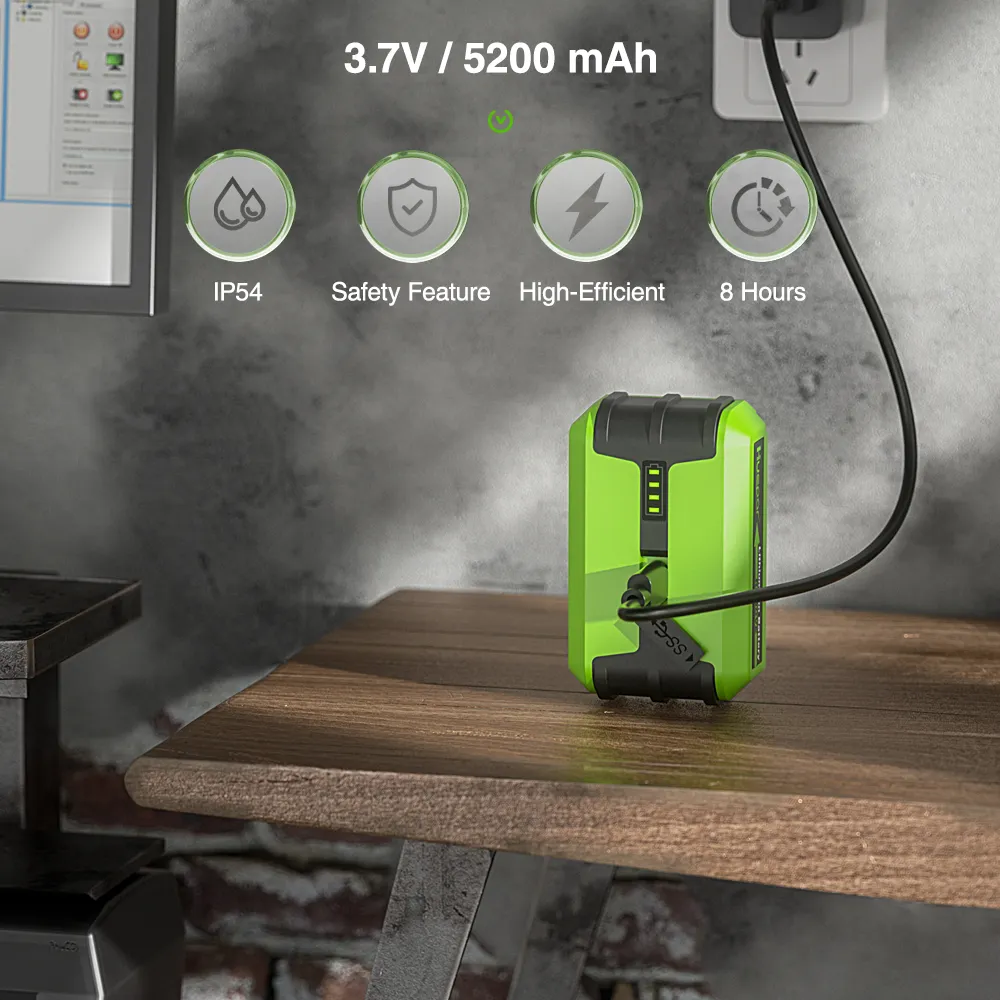

2 Large Capacity Li-ion Batteries & Type-C Charging Port

This laser tool utilizes the 3.7V / 5200mAh large capacity Li-ion battery. An extra battery pack is included in the package for backup.
Users can charge the battery independently with the. Power adapter. There is a Type-C charging port on the Li-ion battery that can be charged separately.
4 battery indicators on the Li-ion battery pack allow users to know the current battery level and charging status.
With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

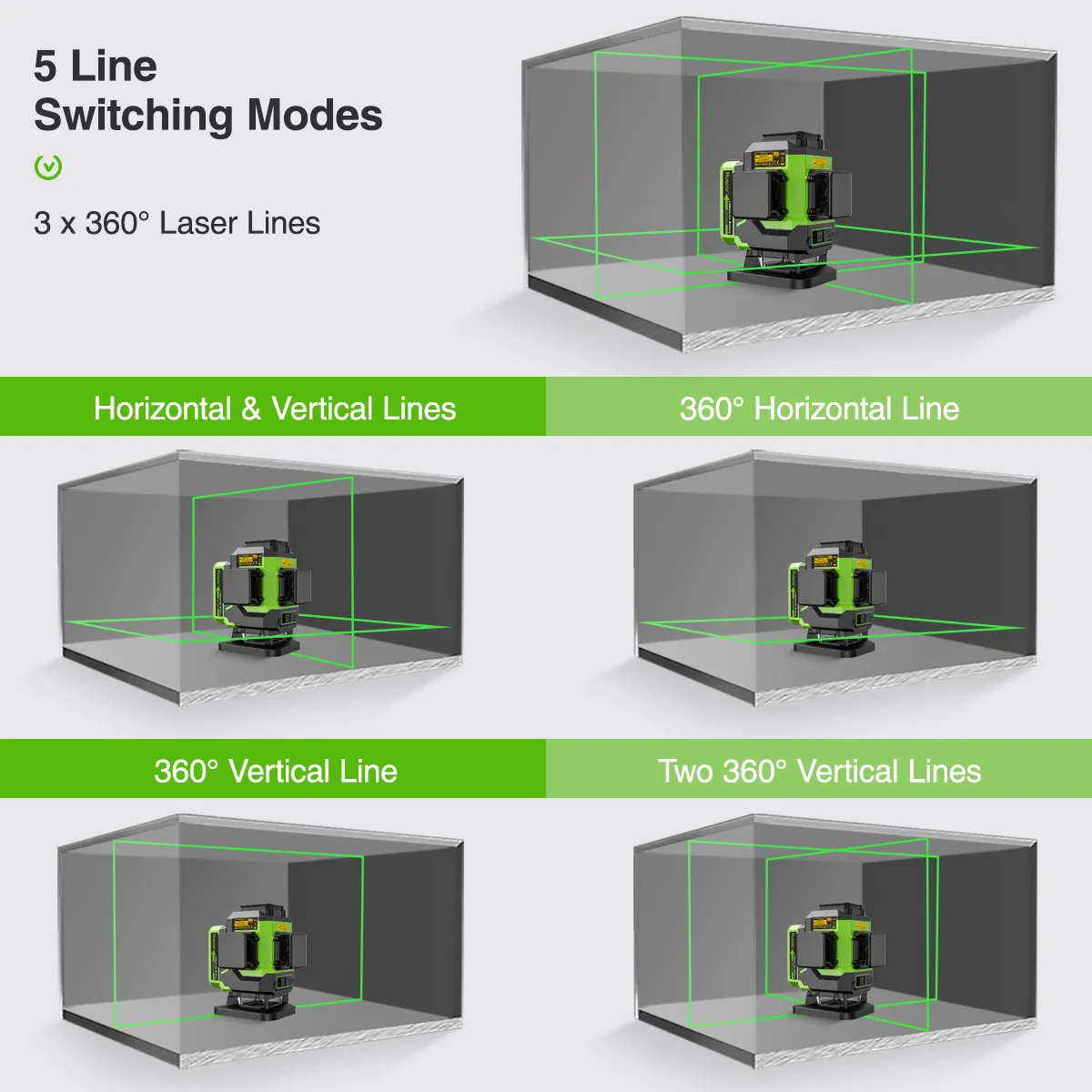

5 Line Swithing Model:

*3 x 360° WITH FLOOR LINE LASER: This laser tool projects one 360° horizontal floor laser line for tiling installation. With the lifting base, the 360° floor laser can raise from the surface to project over and travel past uneven surfaces or obstructions between 1"/2.6cm and 3.54"/8cm height. Two vertical lines cross at 90°angles makes user quickly visualize and finish square layout.

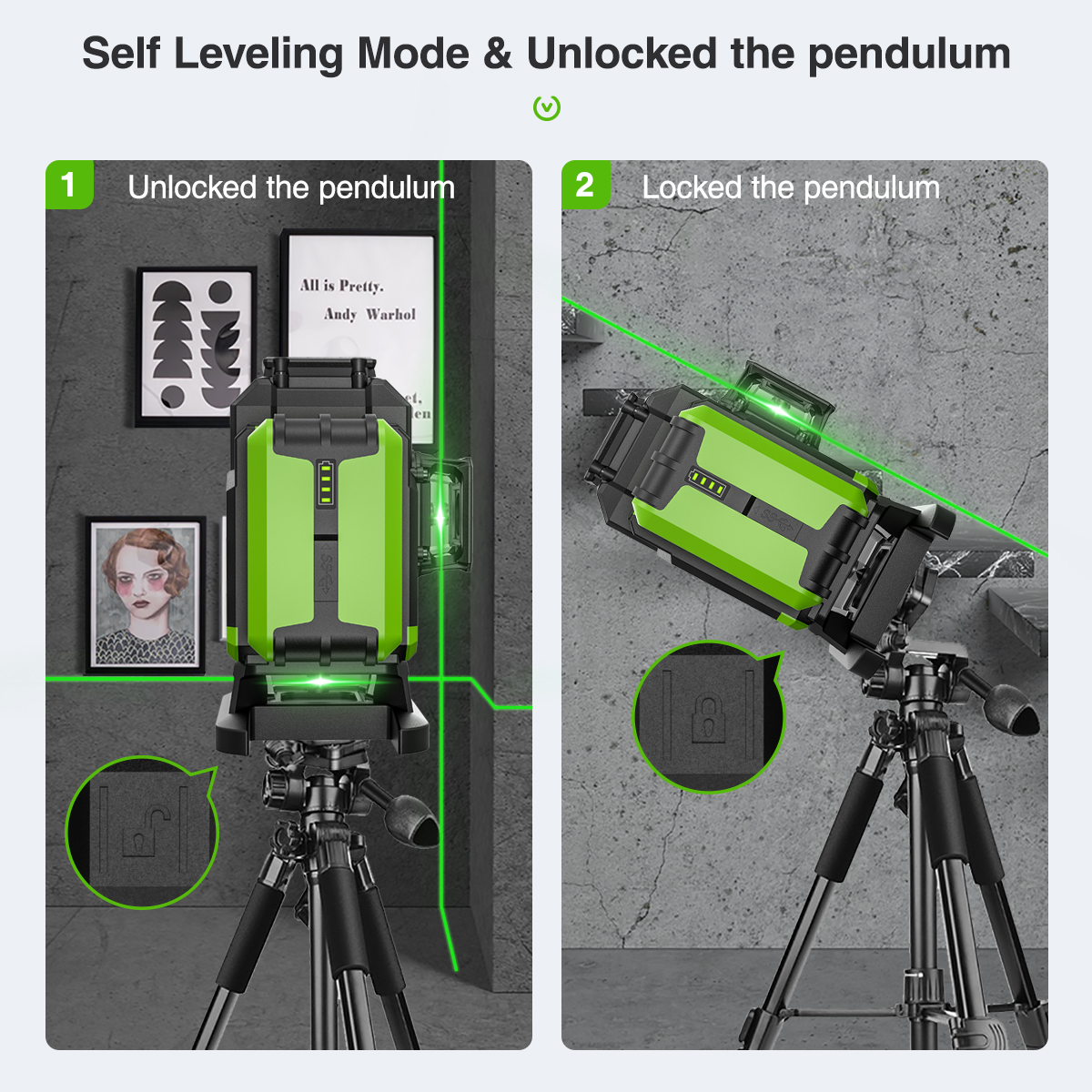

Self-leveling mode：

Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum is in the locked position, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

Pulse Mode：

After power on, short press the power button to switch ON/OFF the pulse mode.

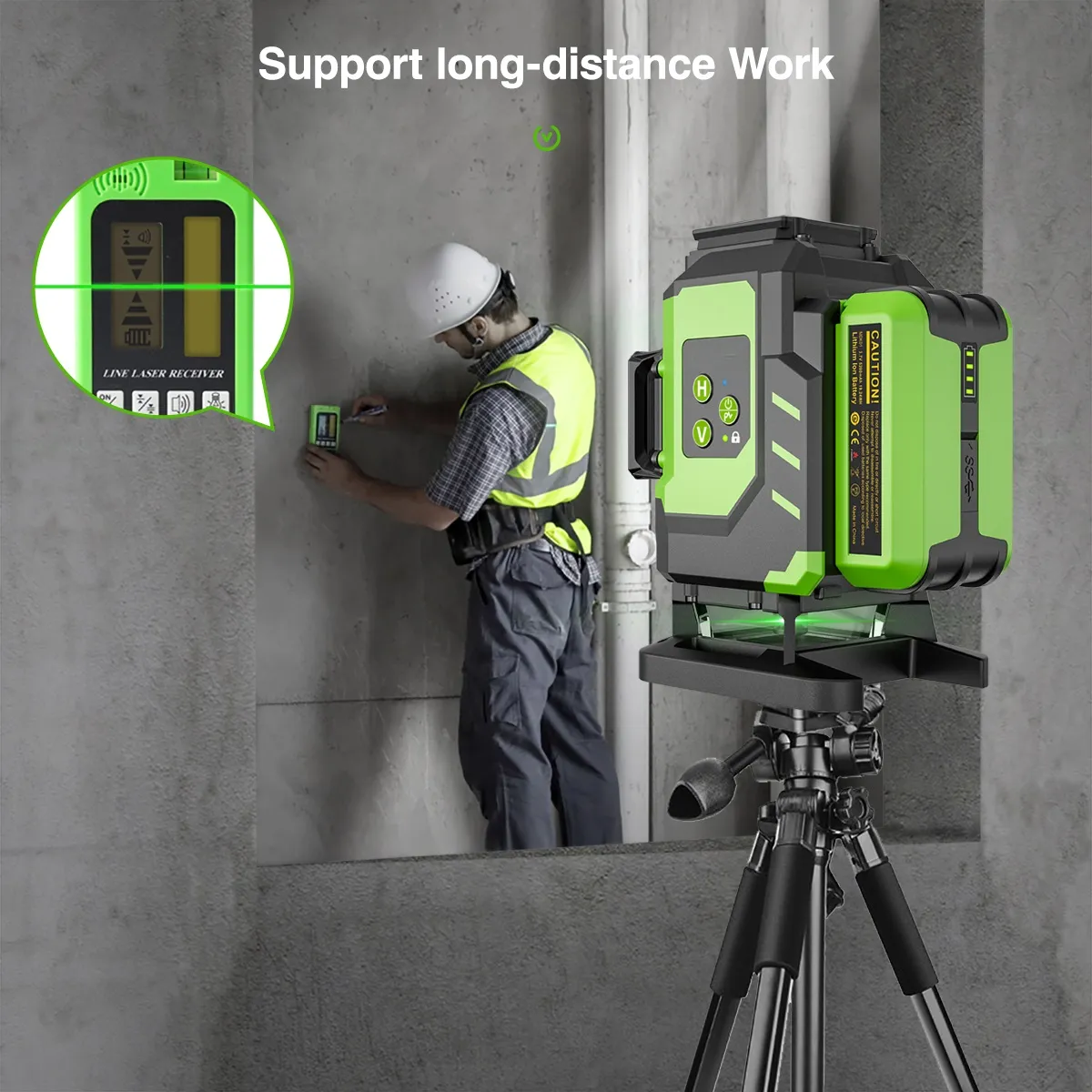

Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Line Laser Receiver. It is compatible with LR-6RG / LR-5RG Laser Detector only.

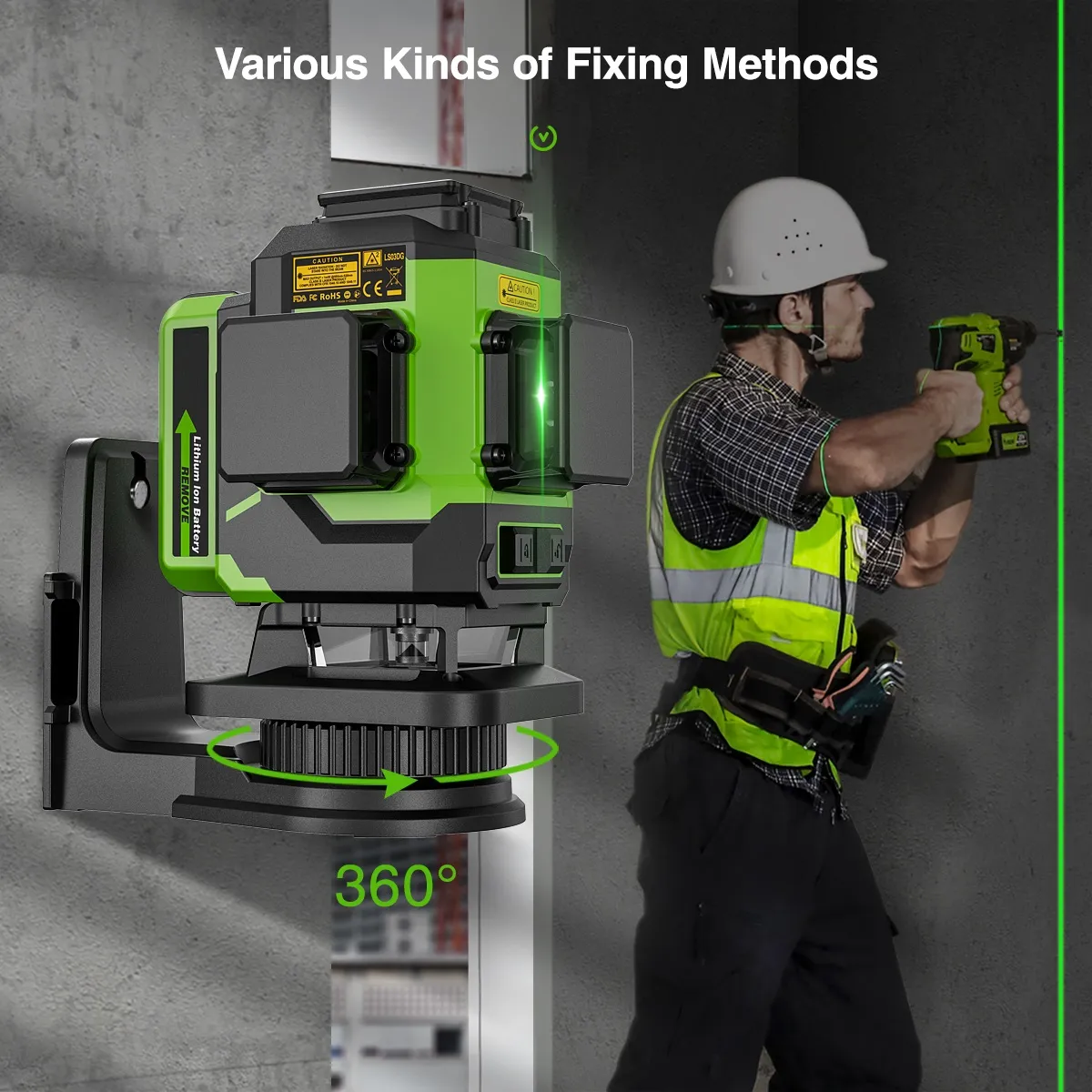

More Installation Methods:

1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.
360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.
1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket is designed for for temporary fastening in place or being fixed on tripod or laser mounting pole.
Replaceable Protective Cover: The laser windows can be removed and replaced with a screwdriver.
Green Target Plate: Increases the visibility of Laser

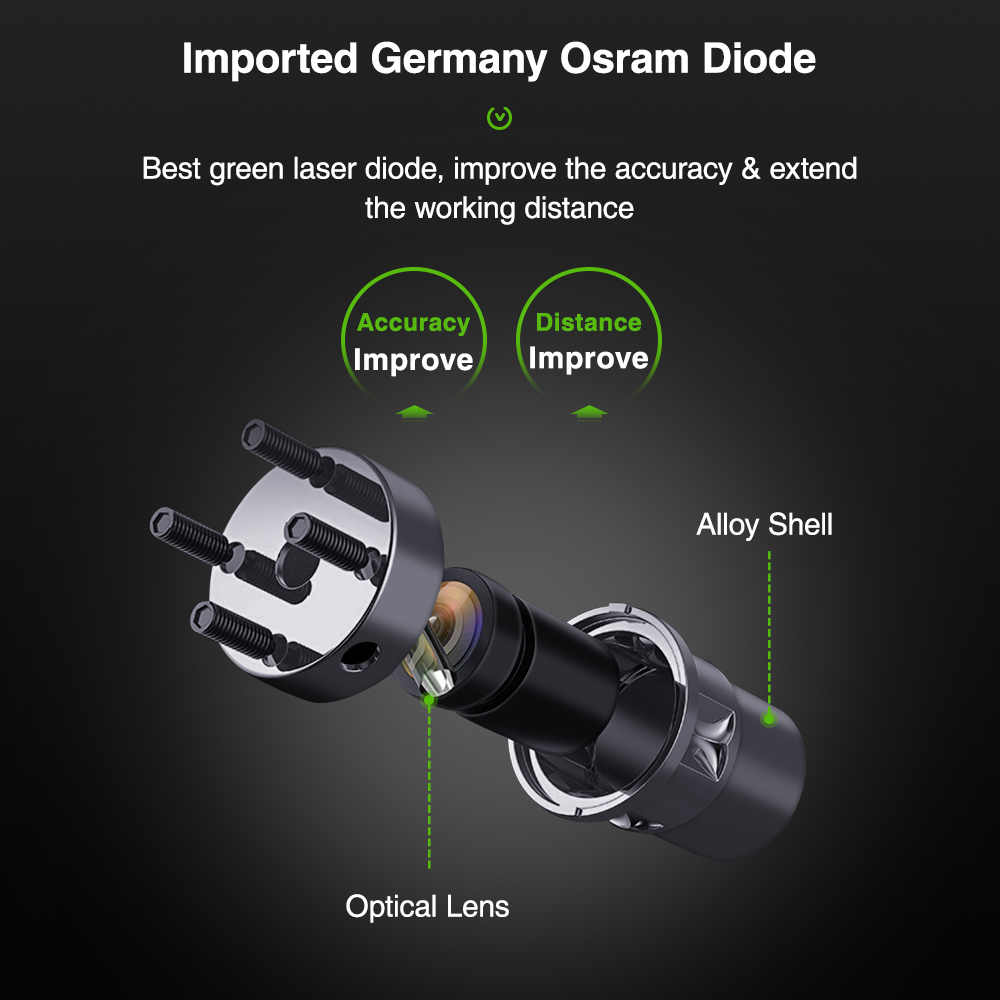

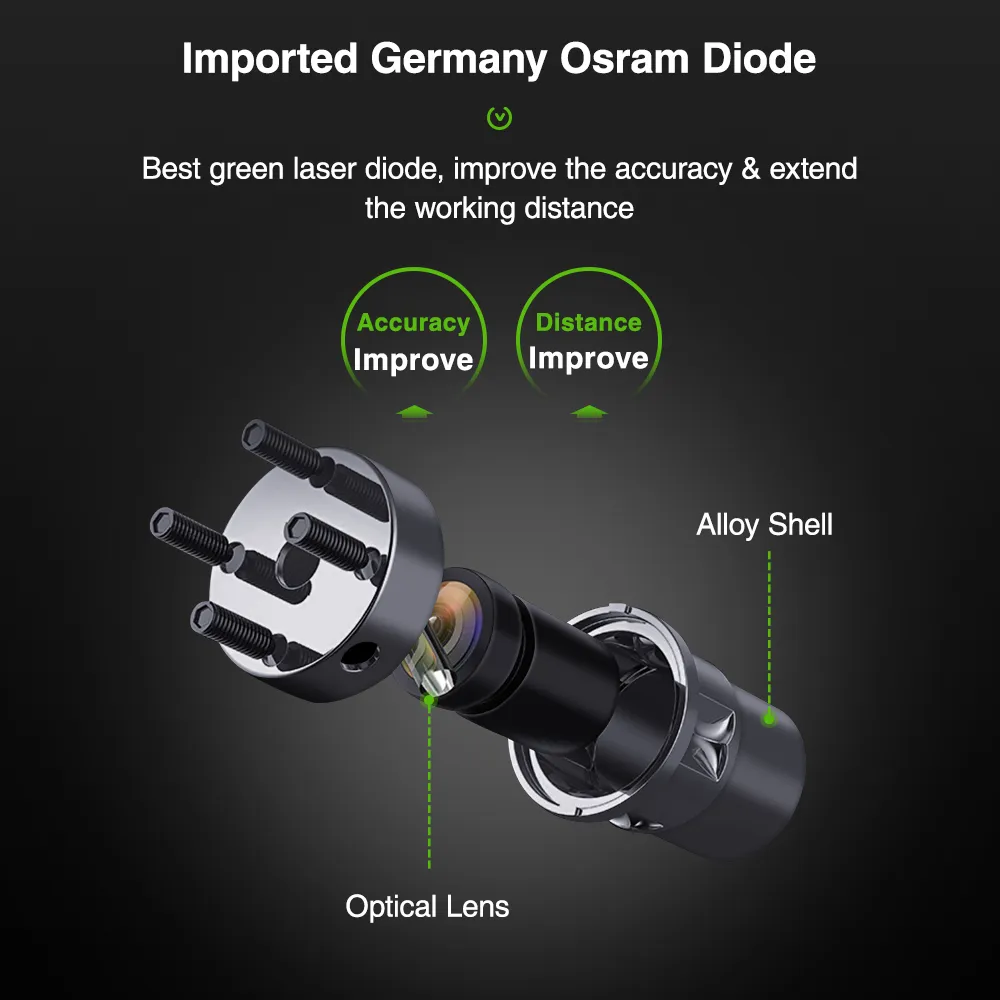

Bright Green Laser Diode:

* Bright Green Laser DThis cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.iode:
