Our employees are skilled at utilizing state-of-the-art technologies.In the application field(s) of Laser Levels, Cross Line Rechargeable Lithium Battery Laser Level B011G is widely used and highly recognized by users. ZHONGSHAN SMART OPTOELECTRONICS TECHNOLOGY CO.,LTD offers a high standard of service together with being competitively priced. Since our inception, ZHONGSHAN SMART OPTOELECTRONICS TECHNOLOGY CO.,LTD have been striving forward with the aim of being a leading company in the globe. We will focus more on improving our R&D capabilities and upgrading technologies in order to develop more creative products, therefore leading the industry trends and keeping us competitive in the market.



Product Description

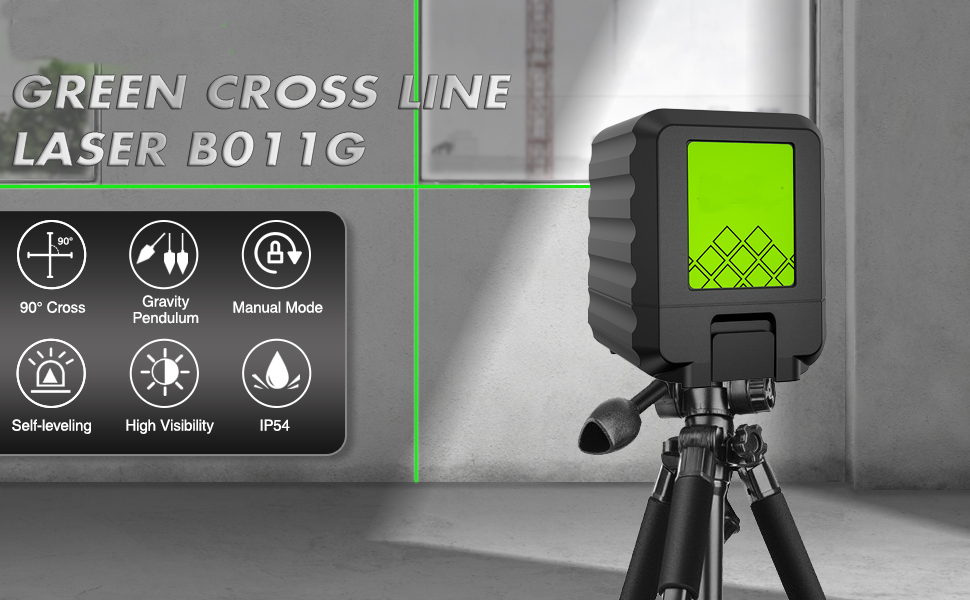

B011G Self-leveling Green Laser Level Specifications:

●Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW
●Laser Wavelength: 505-520nm
●Leveling Accuracy: ±3mm / 10m (±1/9in. At 33 ft)
●Horizontal / Vertical Accuracy:±3mm / 10m (±1/9in. At 33 ft)
●Leveling/Compensation Range: 4°±1°
●Working Distance: 30m / 98ft
●Operating Time: 6 hours with all laser beams on
●Power Source: 2×AA battery (LR6)
●IP Rating:IP54
●Operation Temperature Range: -10℃-＋50℃
●Storage Temperature Range: -20℃-＋70℃

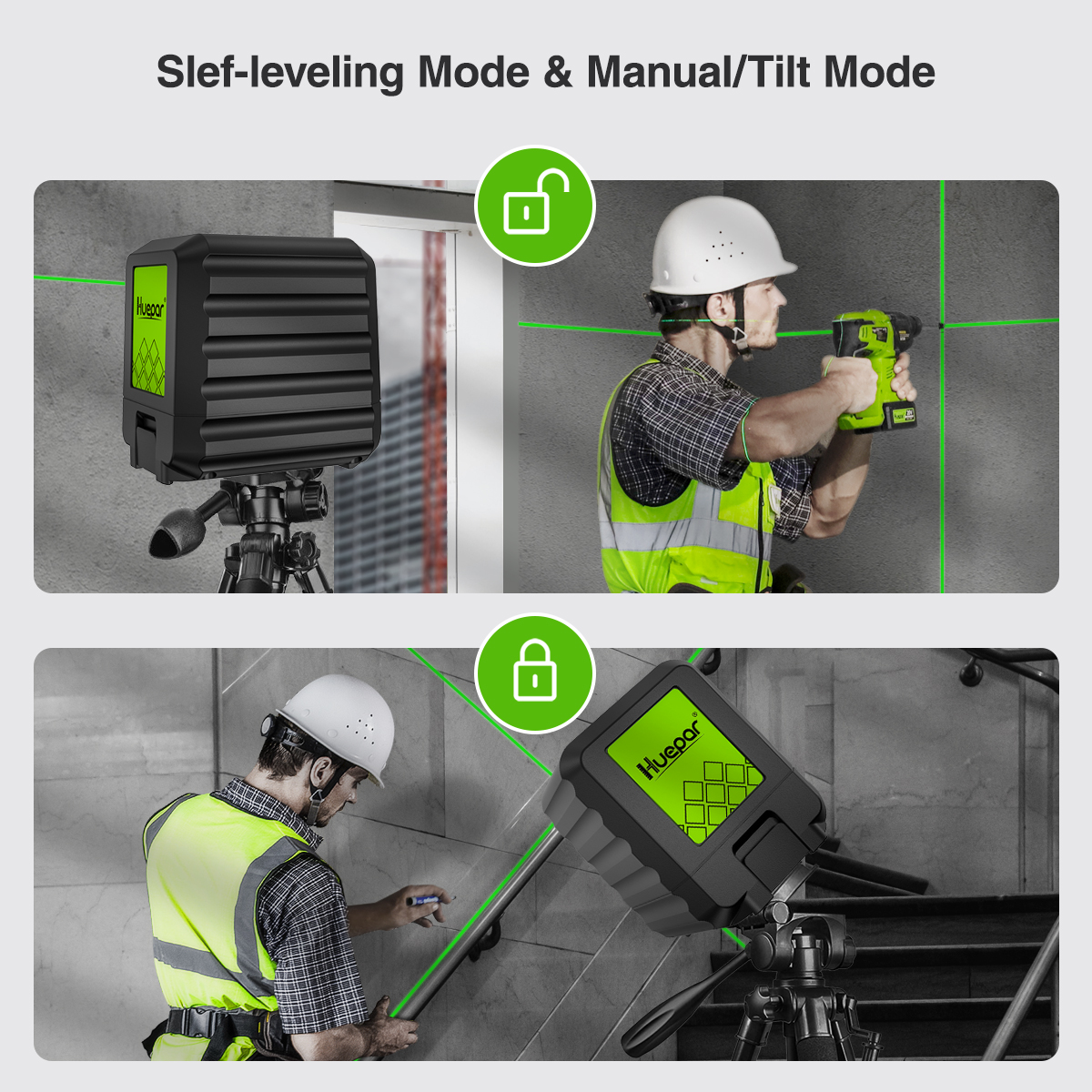

Self-leveling mode & Manual mode

Self-leveling mode:
When the laser tool is switched to the unlocked position, self-leveling mode is on. The laser beam will blink continuously at 2Hz
when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum lock is in locked position, you can place the laser tool at various angles to project non-level straight lines.
The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

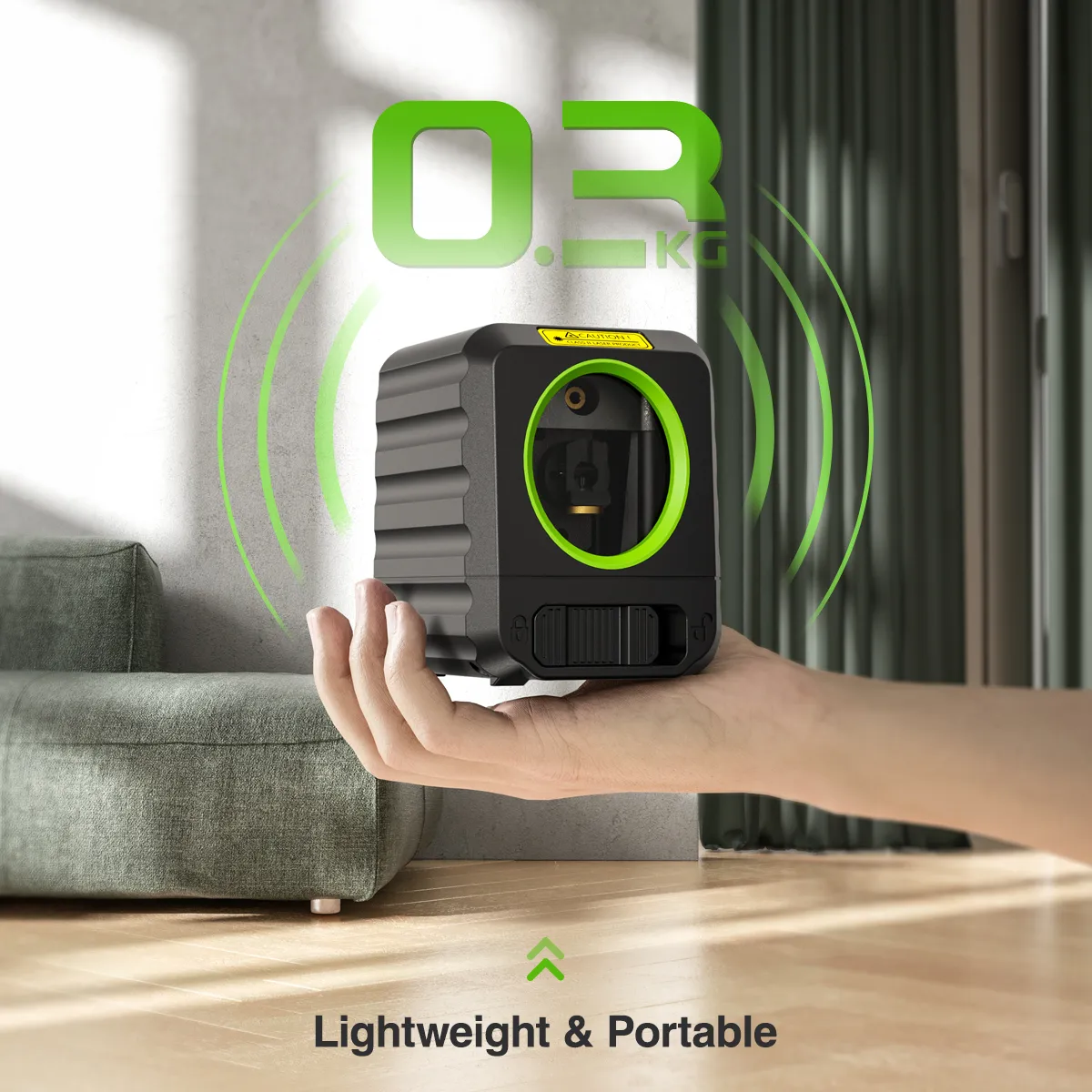

Compact and Handy:

B011G laser level is compact and lightweight for easy gripping, it is the most handy and professional laser tool you can think of to carry out work.

Three line switching functions:

Each time the power button is pressed once, the laser tool projects vertical lines,horizontal lines
and cross lines in sequence.

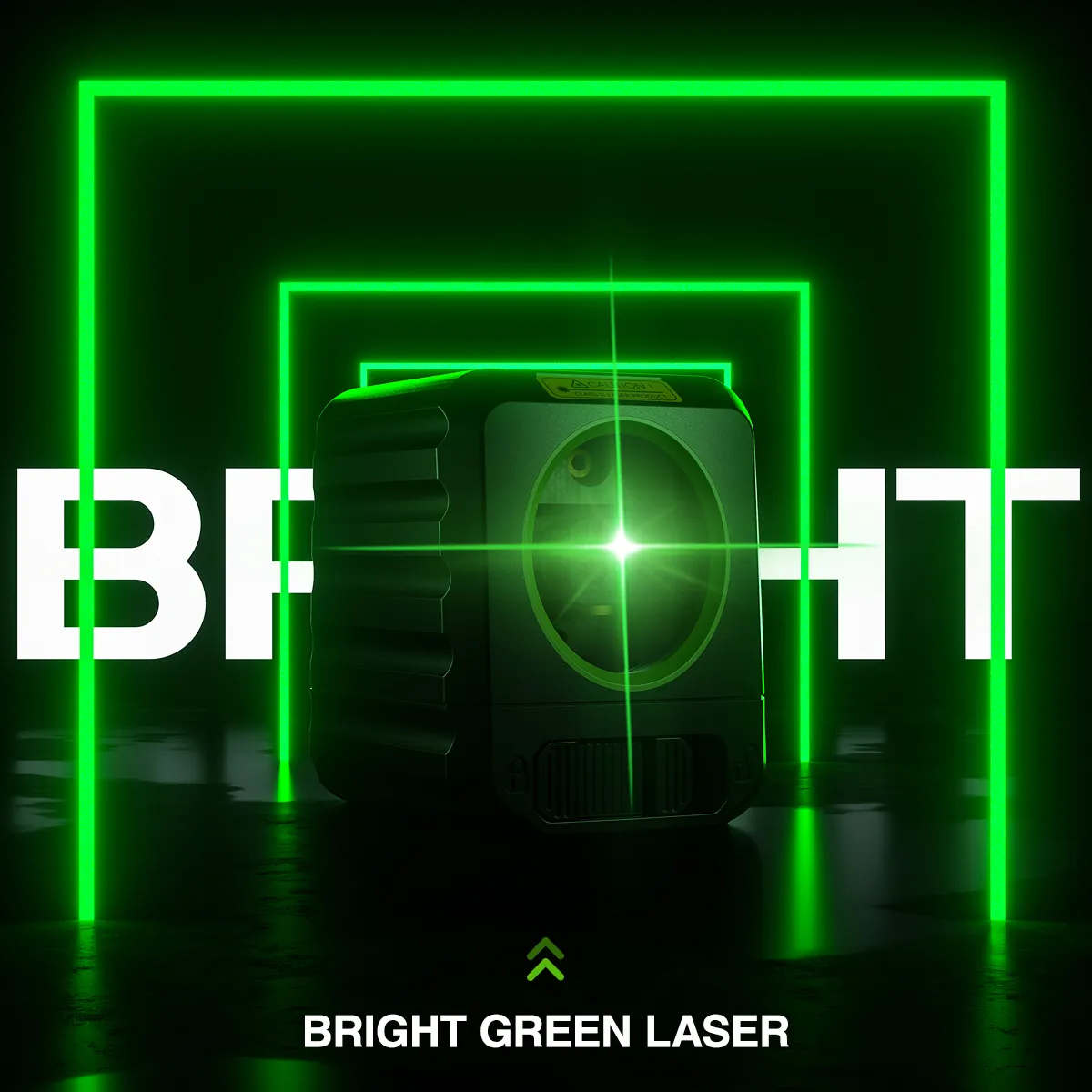

Superior Visibility:

Cross line laser level adopt advanced green laser technology. Bright green vertical and horizontal
lines offer better visibility and can project up to 30m/98 ft. away.

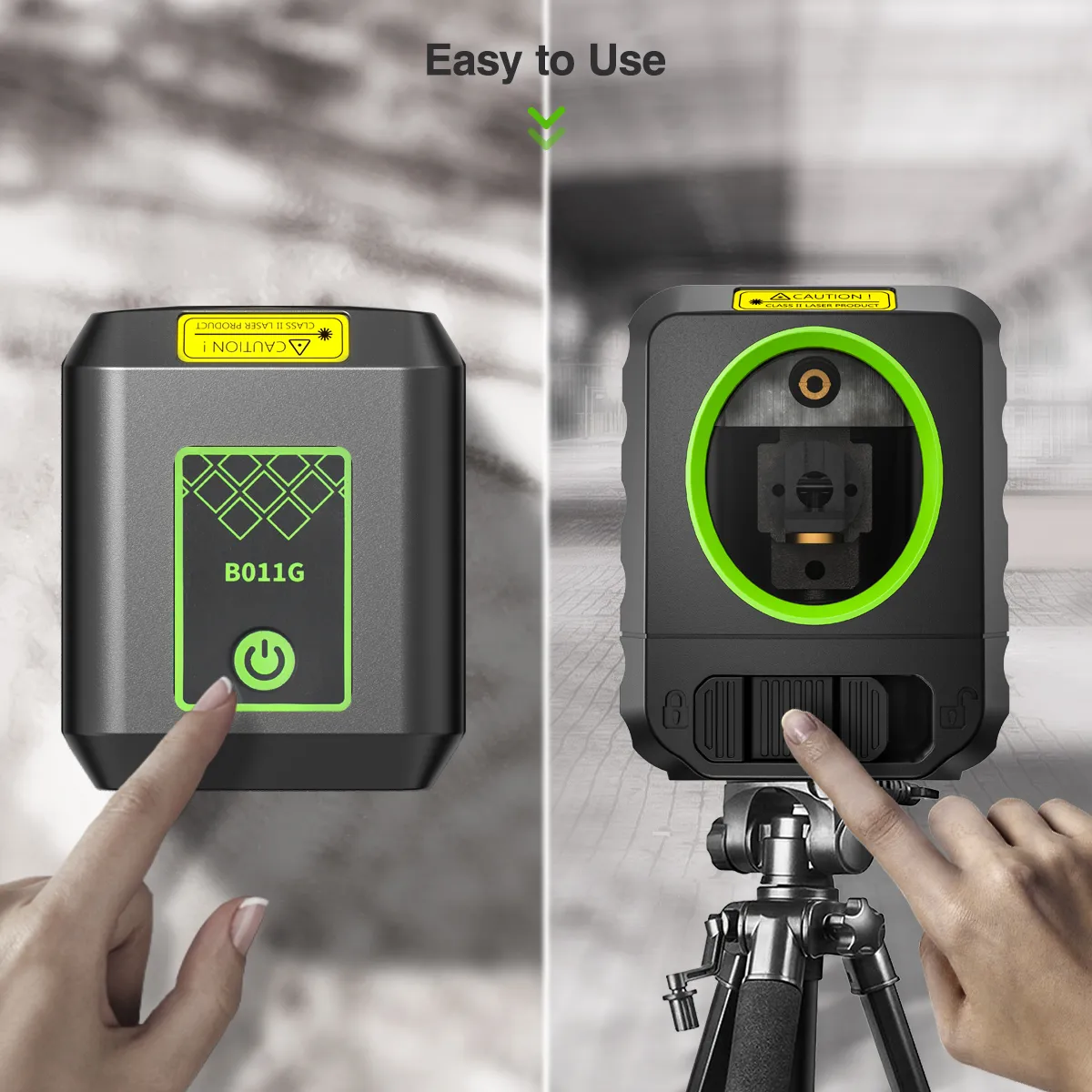

Easy to Use:

This laser tool is simple to use and one switch operation, easy to switch modes and ensure fast and error-free work, makes your life more efficient and simple.

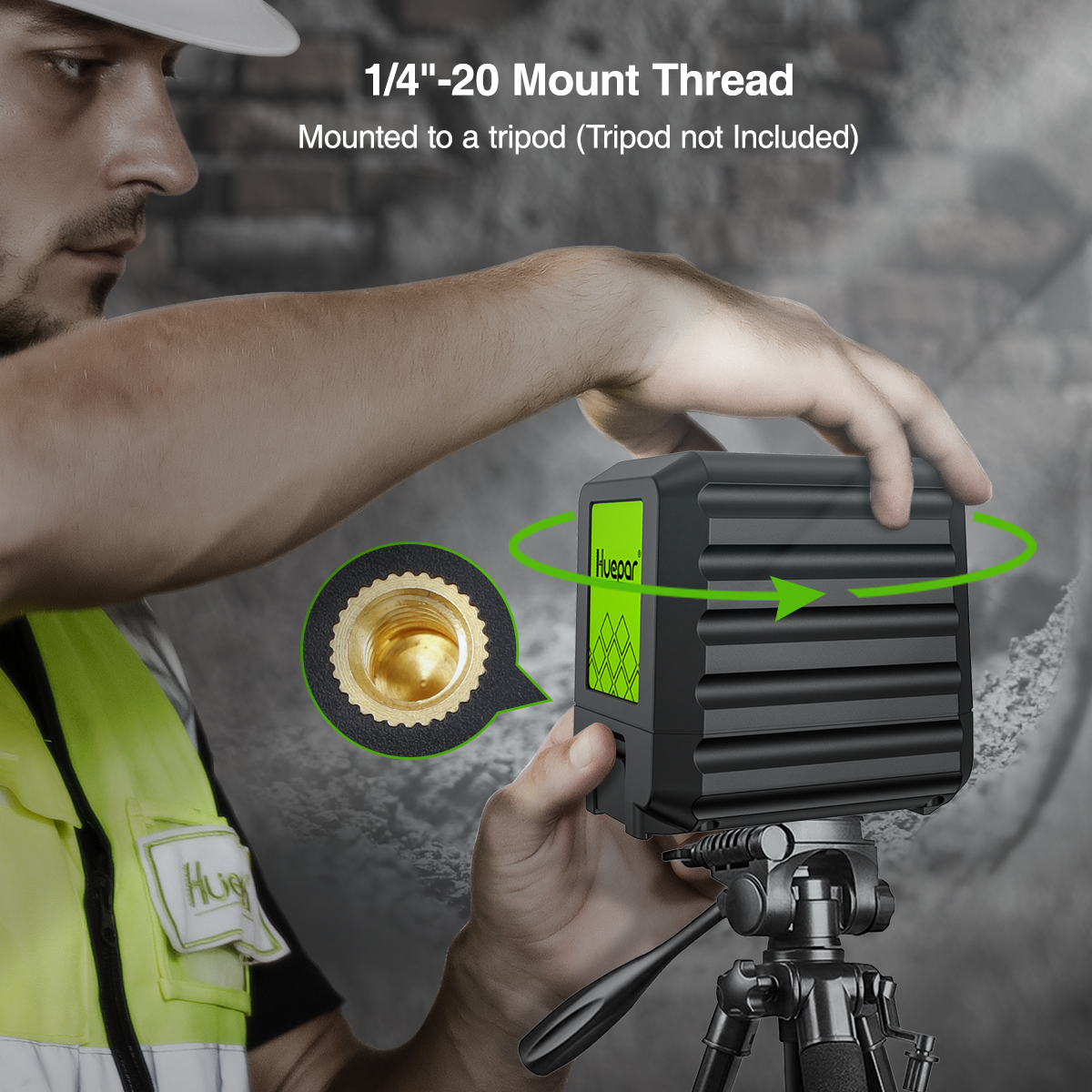

1/4" Threaded Mount：

The B011G cross line laser comes with 1/4"-20 female thread, allowing it to be attached to tripod or other mounting bases for positioning, and adjust its height easily to make measuring flexible and stable.

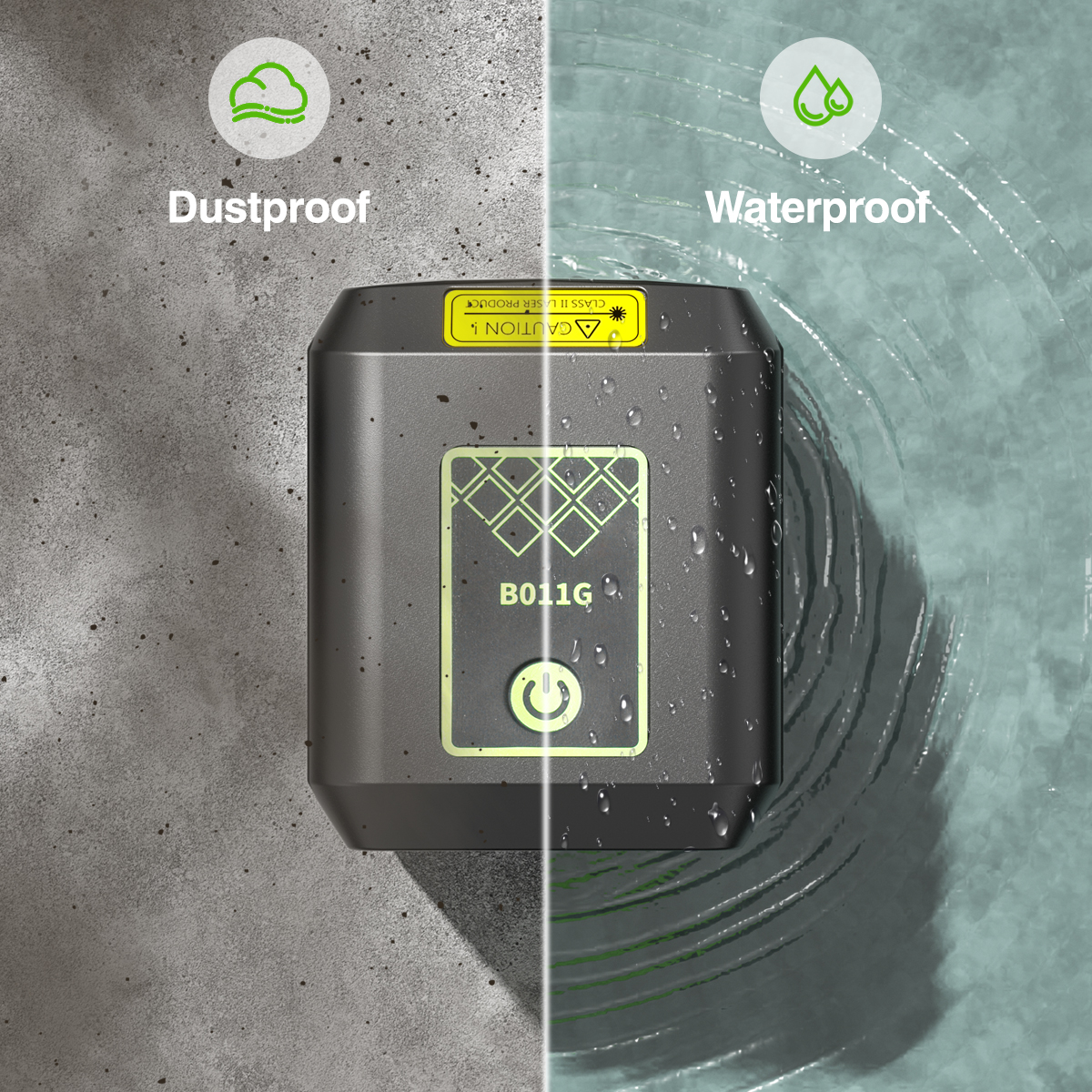

Durable Design：

IP54 water/dust resistance ensures you work well in hazardous working conditions.

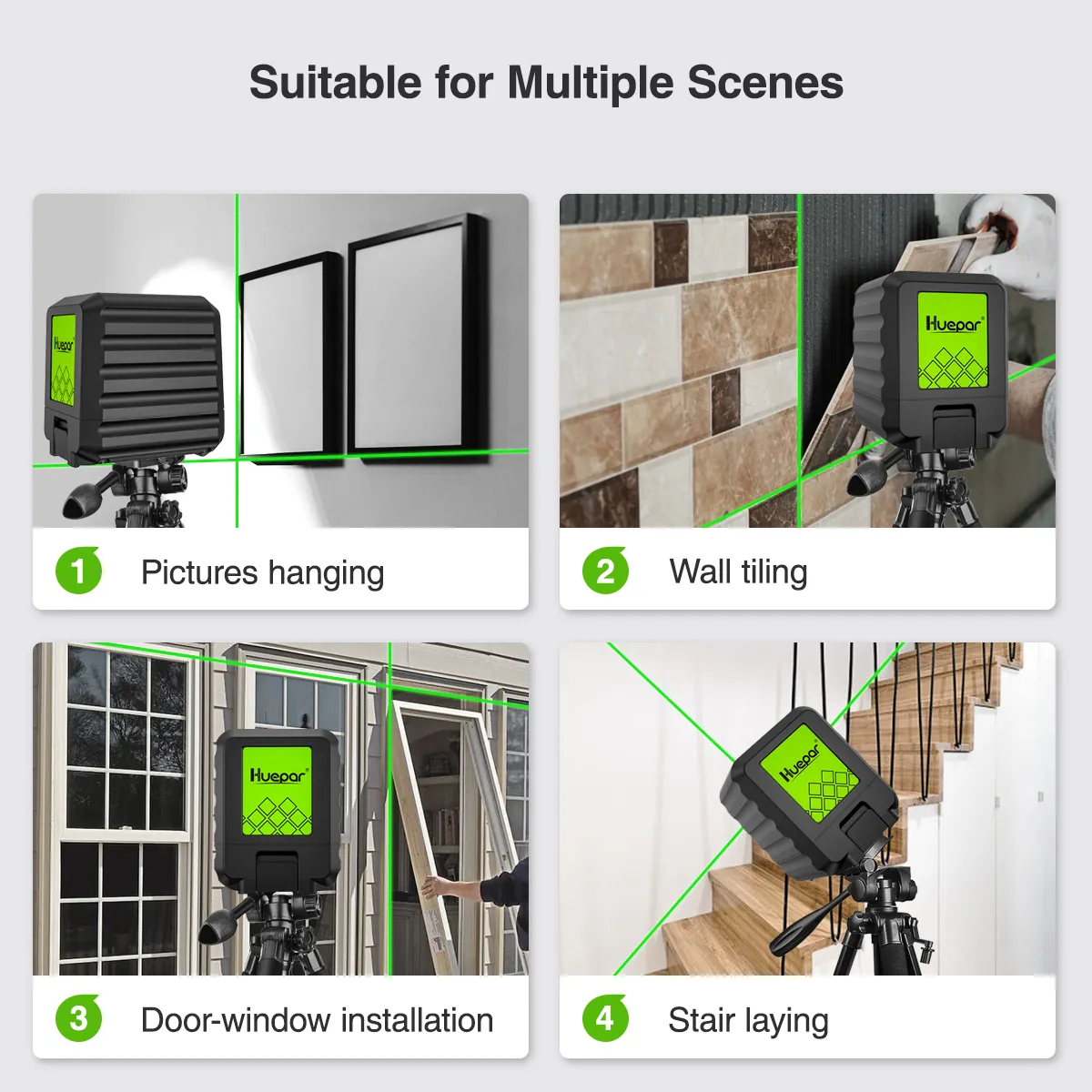

Wide Applications:

This laser tool can help you easier on Home Decoration, Partition Wall Construction,Chandelier Installation, Alignment of Drilling Positions, Stair Handrail Installation, Pictures Hanging Design, Laying out Tile,Windows Construction etc.
