Description
Please be aware that this item is compatible with pulse induction laser levels only.
This laser receiver can NOT be used for Huepar 9011G/9211G/FL360R/FL360G/8300G.If you are not sure whether it suits for your laser tool, please confirm with us before you place an order.
Laser Class: Class 2 (IEC/EN60825-1/2014) <1mW power output.
LR-8RG Laser Detector Specifications: | ||||
Pulse duration：50 μs ；PWM: 5:5 PRF Pulse Repetition Frequency：10KHz (Matched PWM and frequency, Line lasers can work with LR-8RG Laser Receiver) Display：Two-sided LED indicator display Accuracy：high accuracy ±1.5mm,low accuracy ±2mm Working Distance：60m(200ft) Operating Time：20 hours Auto Power Off：10 min Power Source：2*AA Battery Dimension (LxWxH)：140.5mm×60mm×35mm(5.5 x 2.5 x 1.5 inches) Mounting Thread：¼” IP rating：IP54 Beam colour detected：Green & Red Up / Down / Level indicator：Yes Audible Tone：90dB |

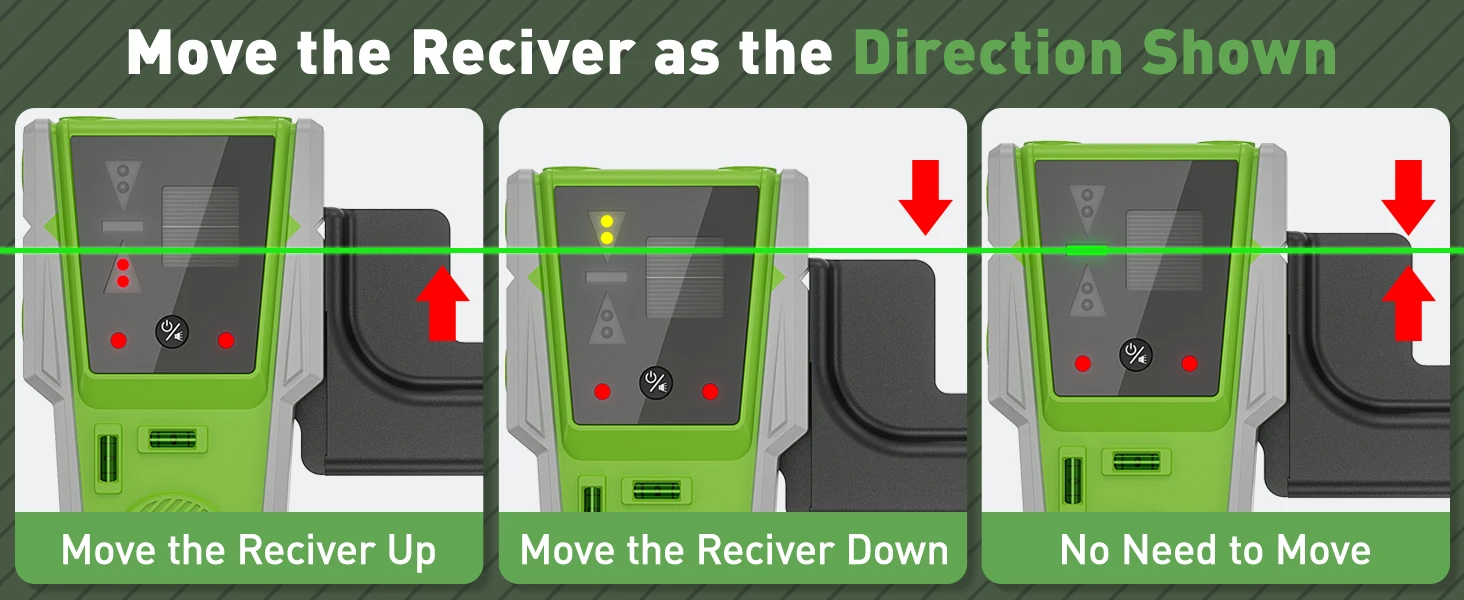

Datum Lower than Laser Beam – Move Up
Datum Higher than Laser Beam – Move Down
When Datum in Line with Laser Beam – The LED Indicator Light is Displayed in Green
Datum Higher than Laser Beam – Move Down
When Datum in Line with Laser Beam – The LED Indicator Light is Displayed in Green

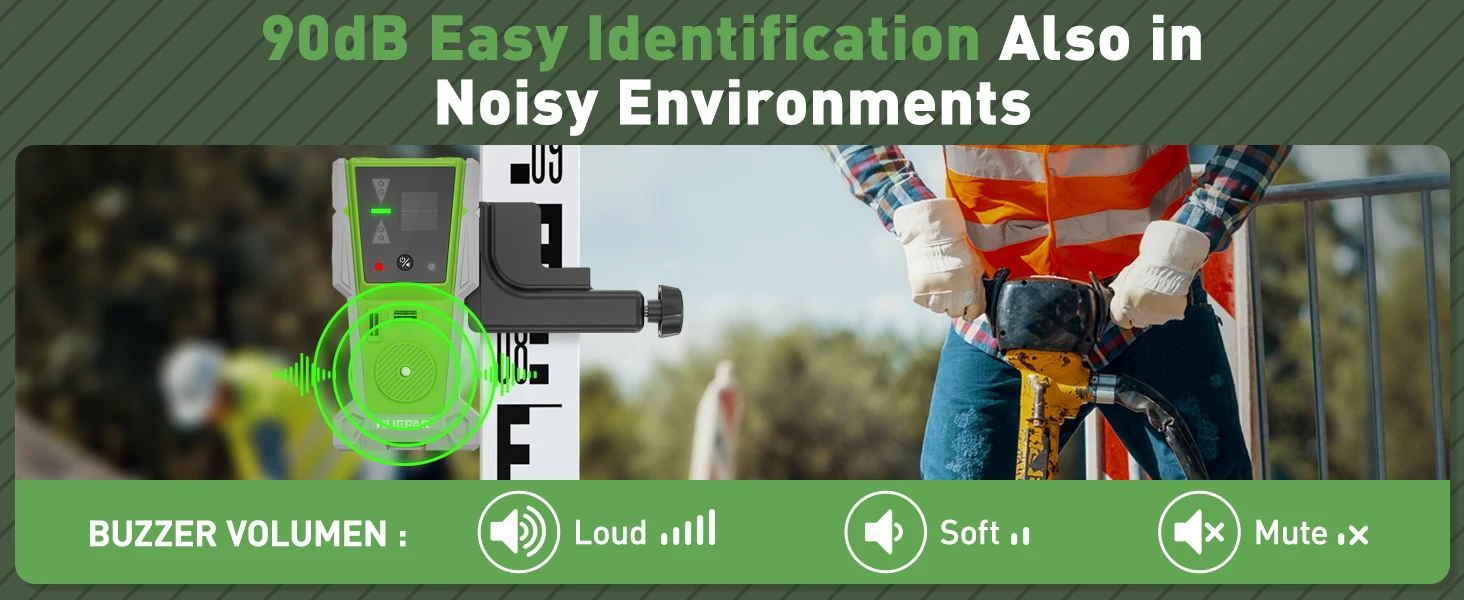

You could reduce the sound level when you use indoors as it may get too loud and irritate those around you. As for open spaces,
the device needs to be loud for people to hear it over a distance.
A slower beeping tone signals – Move Up
A fast beeping tone signals – Move Down
the device needs to be loud for people to hear it over a distance.
A slower beeping tone signals – Move Up
A fast beeping tone signals – Move Down

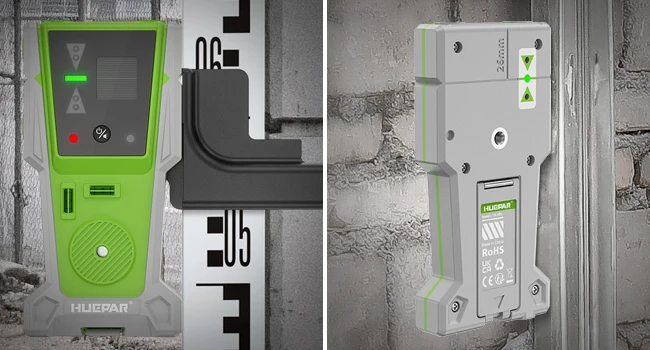

Built-in Bubble and Holder
LR-8RG Laser Detector comes complete with a compatible rod mounting bracket. The built-in bubble level provides an extra measure of leveling accuracy.
Clear Multi-Sied Readouts
With Two-SIDED display on the front and back of the receiver to offer easier visual readout.
It could be usage in broad sunlight. Sunlight often makes it difficult for laser beams to be visible.The laser detector could help you find out the laser lines.
It could be usage in broad sunlight. Sunlight often makes it difficult for laser beams to be visible.The laser detector could help you find out the laser lines.
