* Height Adjustment Graduations: cm / inch
* Male Thread for Laser Level: 1/4"-20
* Female Thread for Tripod: 1/4"-20 and 5/8"-11
* The length of the male thread to the side of the bracket: 3-10 cm
* Load capacity: 3KG
* Net Weight & Size: 443g & 18.7 x 16.3 x 6.2 cm
* Adjustment: 360-degree horizontal rotation, X-axis (adjust the horizontal position left and right), Y-axis (adjust the
horizontal position back and forth), Height adjustment.
* The adapter is only compatible with: Huepar S02CG, S03CG/S03CG-L, S03DG/S03DG-L, S04CG/S04CG-L, P02CG, P03CG, P04CG

* Adjust the height within 9.5 cm. A locking knob enables to fix the working height.
* The graduations are marked in inches and centimeters for easy readouts.
* Adjust the position back and forth within 5.5cm to suit for laser tools of different size.
* Make 360° adjustments clockwise or counterclockwise.
* Adjust the horizontal position left and right within 0.8cm.

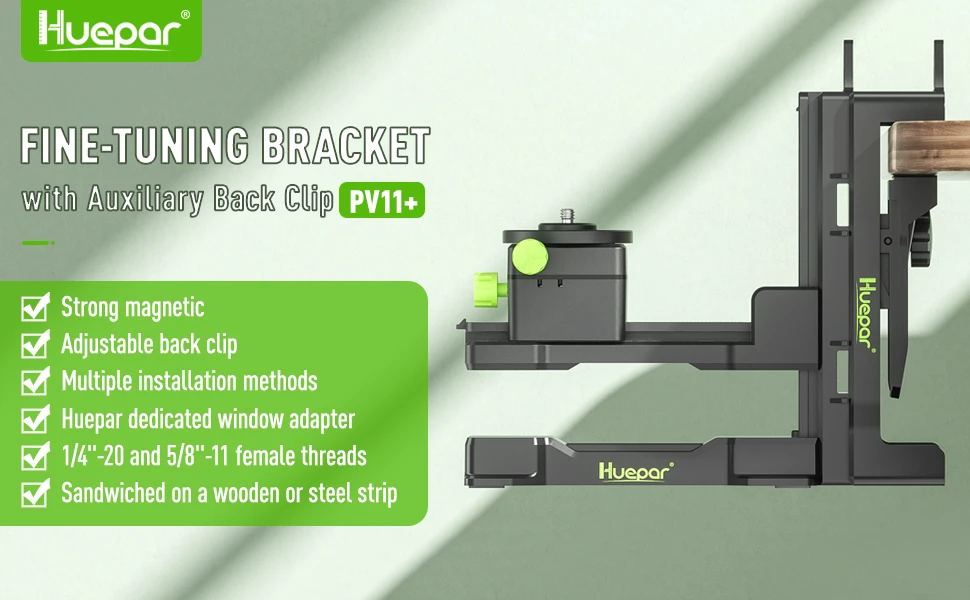

* With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces.
* The magnetic bracket has 1/4 In-20 and 5/8 In-11 threaded mounts on the bottom delivering versatility to be used with standard tripod or pole mounts.

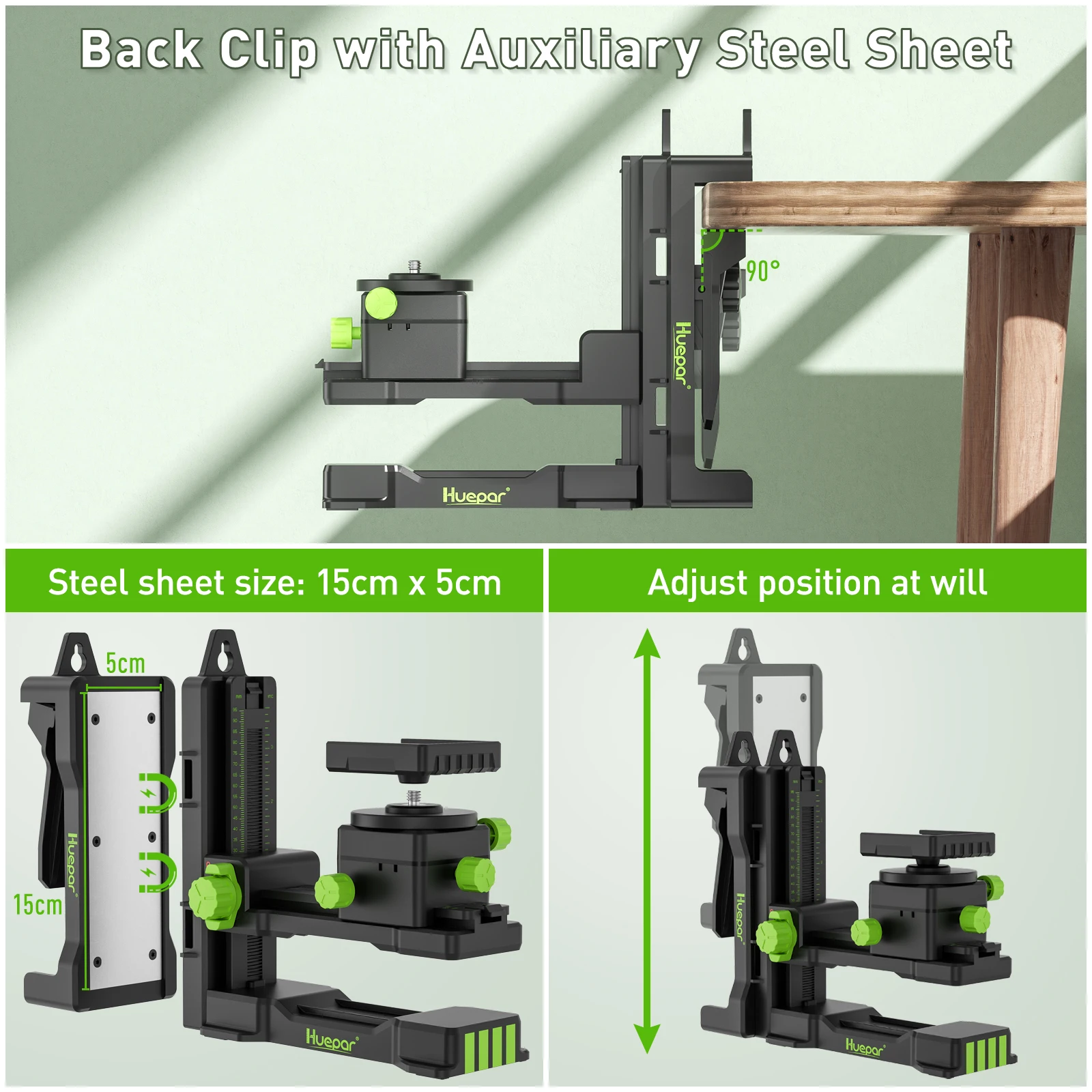

* Slots for screws, nails, raceways or optional straps are designed to make the installation much firmer.

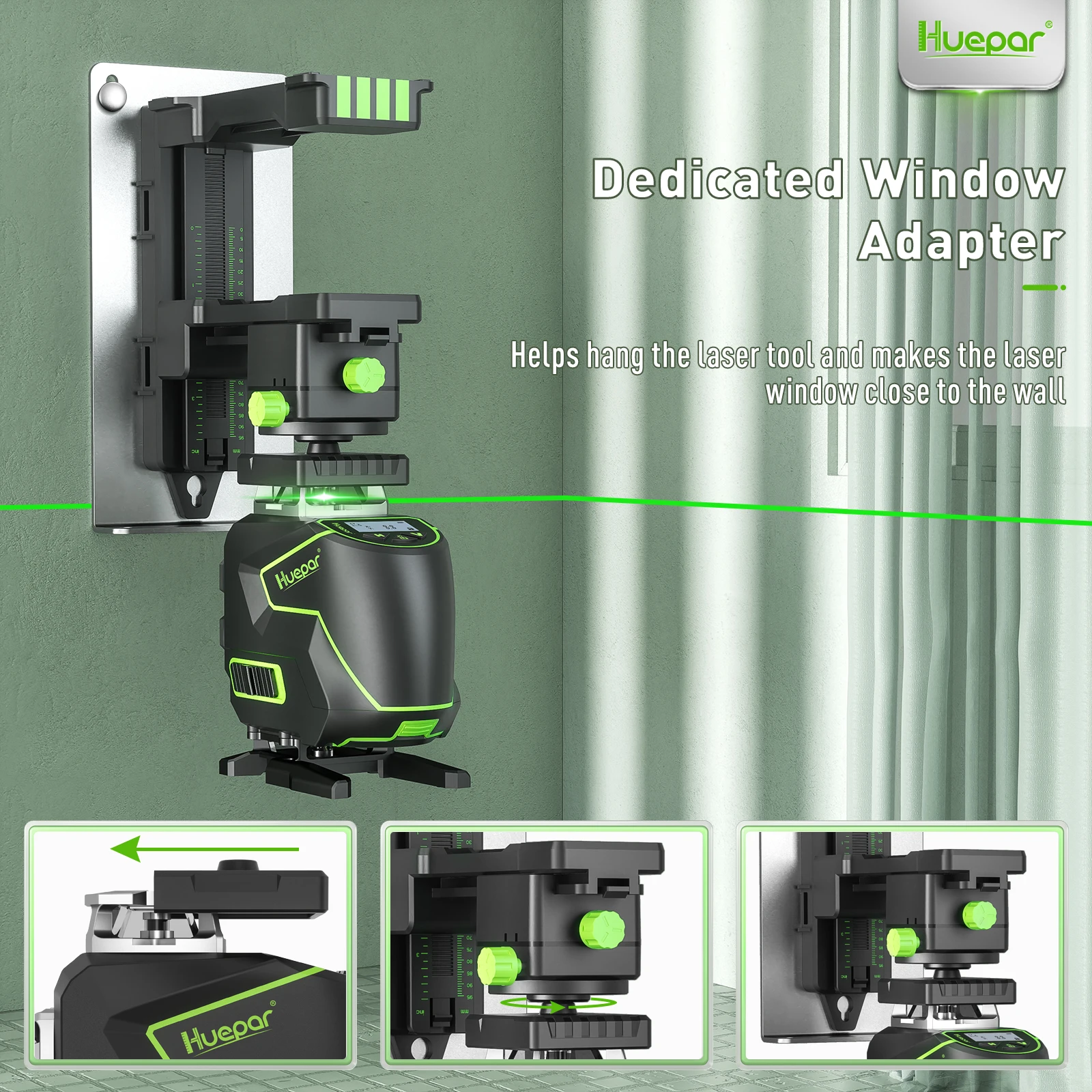

* A dedicated adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways.
* Due to the special design of the groove, Huepar adapter is only suitable for certain models:
* Huepar S02CG, S03CG/S03CG-L, S03DG/S03DG-L, S04CG/S04CG-L, P02CG, P03CG, P04CG
