With immense market knowledge, we have been able to provide optimum quality Huepar Laser Detector LR-6RG,,Red and Green Beams Laser Level Receiver. The accumulated rich experience and strong technological innovation capabilities have kept ZHUHAI WUKON OPTOELECTRONICS TECHNOLOGY CO.,LTD at the forefront of the market, and Huepar Laser Detector LR-6RG,,Red and Green Beams Laser Level Receiver developed have perfectly solved the pain points of the industry and the market. Our expertise and technologies enable tailor-made solutions for every customer.

Product Description

Please note NOT compatible with Rotary Laser Level.



Please be aware that this item is compatible with pulse induction laser levels only.
This laser receiver can NOT be used for Huepar 9011G/9211G/FL360R/FL360G/8300G.
If you are not sure whether it suits for your laser tool, please confirm with us before you place an order.
Laser Class: Class 2 (IEC/EN60825-1/2014) <1mW power output.

LR-6RG Laser Detector Specifications:

* Pulse duration: 50 μs ; PWM: 5:5 * PRF Pulse Repetition Frequency : 10KHz (Matched PWM and frequency, Line lasers can work with LR-6RG Laser Receiver) * Display: Three-sided LED indicator display * Leveling Accuracy: ±1.5mm(±1/17 In.) * Laser Reception Window Width: 20mm(4/5 In.) * Laser Reception Window Height: 20mm(4/5 In.) * Working Distance: 60m(200ft) * Operating Time: 70 hours * Auto Power Off (with No Signal Detected): 8 min * Power Source: 1*9V Dry Battery * Operating Temperature Range: -10℃ to + 50℃ * Storage Temperature Range: -25℃ to + 70℃ * Dimension (LxWxH): 140.5mm×60mm×35mm(5.5 x 2.5 x 1.5 inches) * Weight: 143g with battery

LR-6RG Laser Detector Features:

✔️HUEPAR DEDICATED RECEIVER- Huepar LR-6RG receiver can ONLY use with Huepar Line Laser Level. Please note can NOT be used for Rotary Laser Level. Recommended for use in accompanied with Huepar902CG/901CG/8211G/BOX-1G/BOX-1R/GF360G/GF360R/622CG/622CR/621CG/621CR/603CG/603CR/602CG/602CR/DT03/904DG/903DG/B03CG/B02CG/B21CG/503CG/503DG Laser Level. ✔️AVAILABLE FOR RED AND GREEN PULSE LASER- Turn on the Pulse Mode of the laser level, then Huepar LR-6RG laser receiver allows detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200ft (60m). ✔️CLEAR MULTI-SIDED READOUTS- Ergonomic design with display on the front, side and back of receiver, offers easier visual readout. This unit is outfitted with a dual-sided Bubble Vial on both the front and top, in order to more accurately determine the level. ✔️PRECISE OPTICAL AND ACOUSTIC SIGNALS- This laser receiver features a user-friendly interface and is smart in its simple design. Optical and acoustic signals help to locate the laser plane quickly and accurately. The LED indicator provides a clear and accurate signal. Beep sounds will remind you when you find the target. ✔️LONG BATTERY LIFE AND CLAMP HOLDER- The receiver comes with a 9V dry battery, providing you with about 70 working hours. There is also an automatic shut-off feature that power down the device after about 8 minutes of being idle to extend battery life. The attached heavy-duty clamp makes it easy to mount the detector to a rod or other target point.



Using Tips

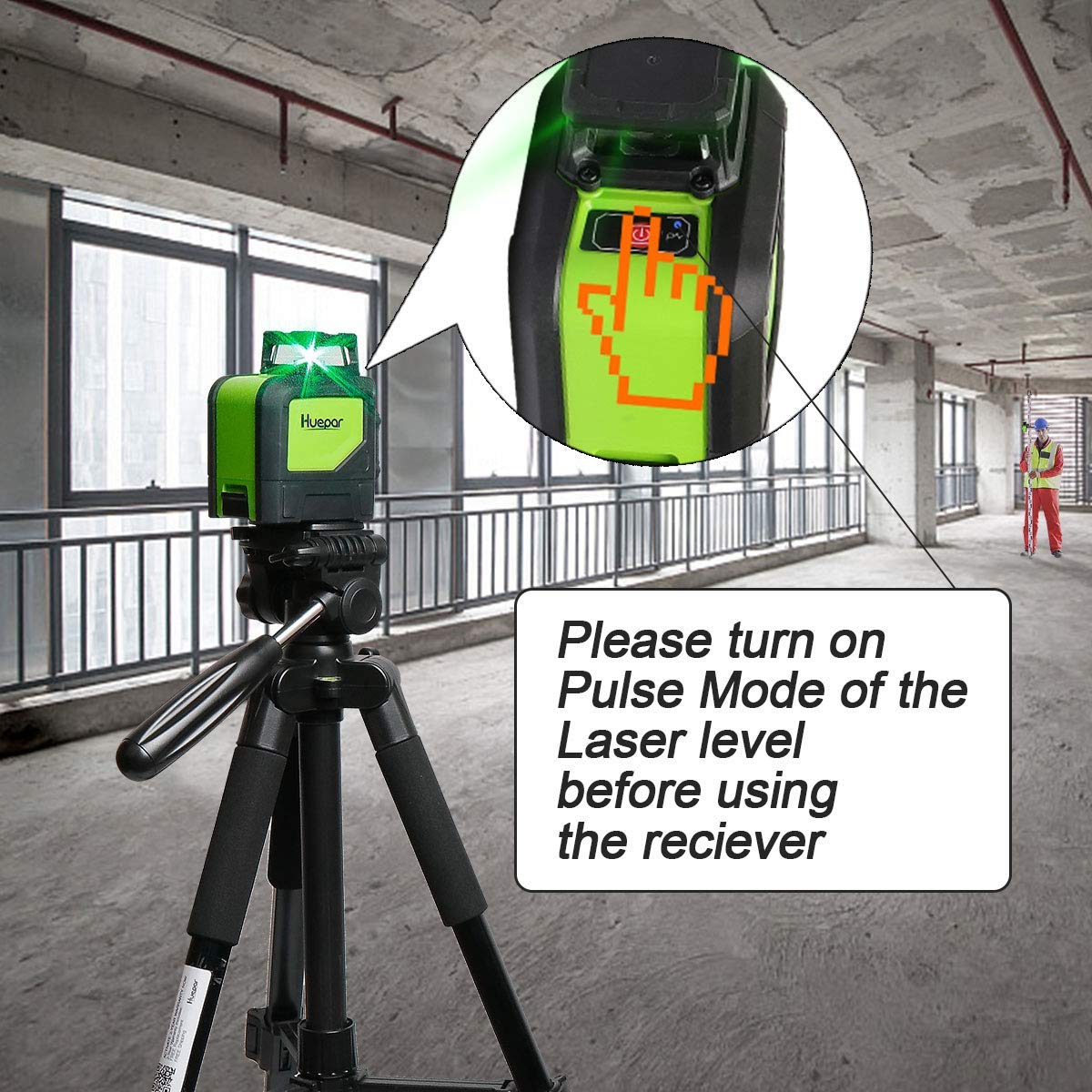

* Put the laser level in Pulse (Outdoor) Mode.
* Made sure the laser level and the Receiver windows were clean.
* Recheck the batteries in both devices (Laser level & Huepar Laser Receiver).
* Made sure your laser level could used in accompanied with Huepar Receiver.
* Recommended for using with Huepar
902CG/901CG/8211G/BOX-1G/BOX-1R/GF360G/GF360R/622CG/622CR/621CG/621CR/603CG/603CR/602CG/602CR/DT03 Laser Level

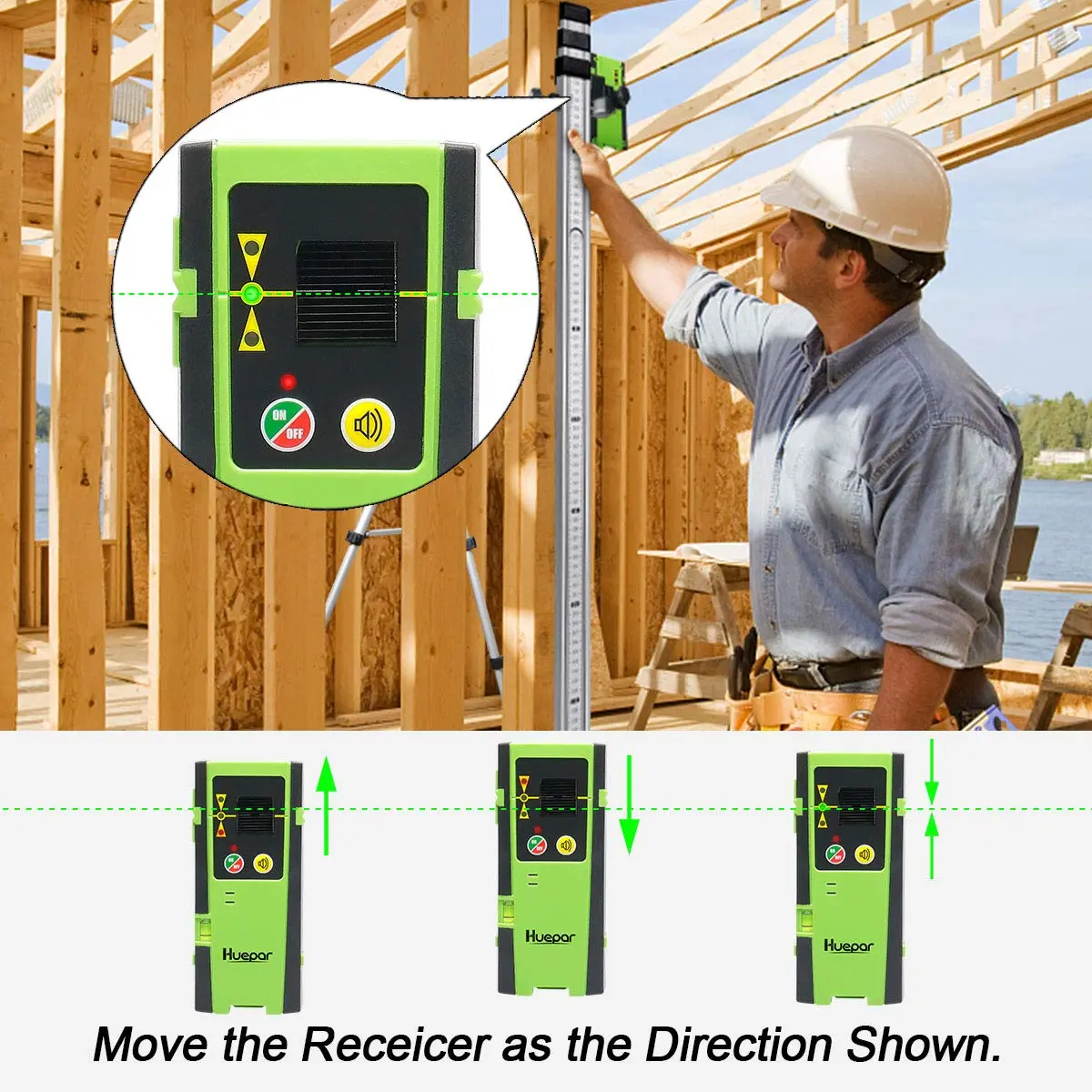

Precise Optical Signals

Move the Detector as the Direction Shown:

* Datum Lower than Laser Beam – Move Up
* Datum Higher than Laser Beam – Move Down
* When Datum in Line with Laser Beam – The LED Indicator Light is Displayed in Green

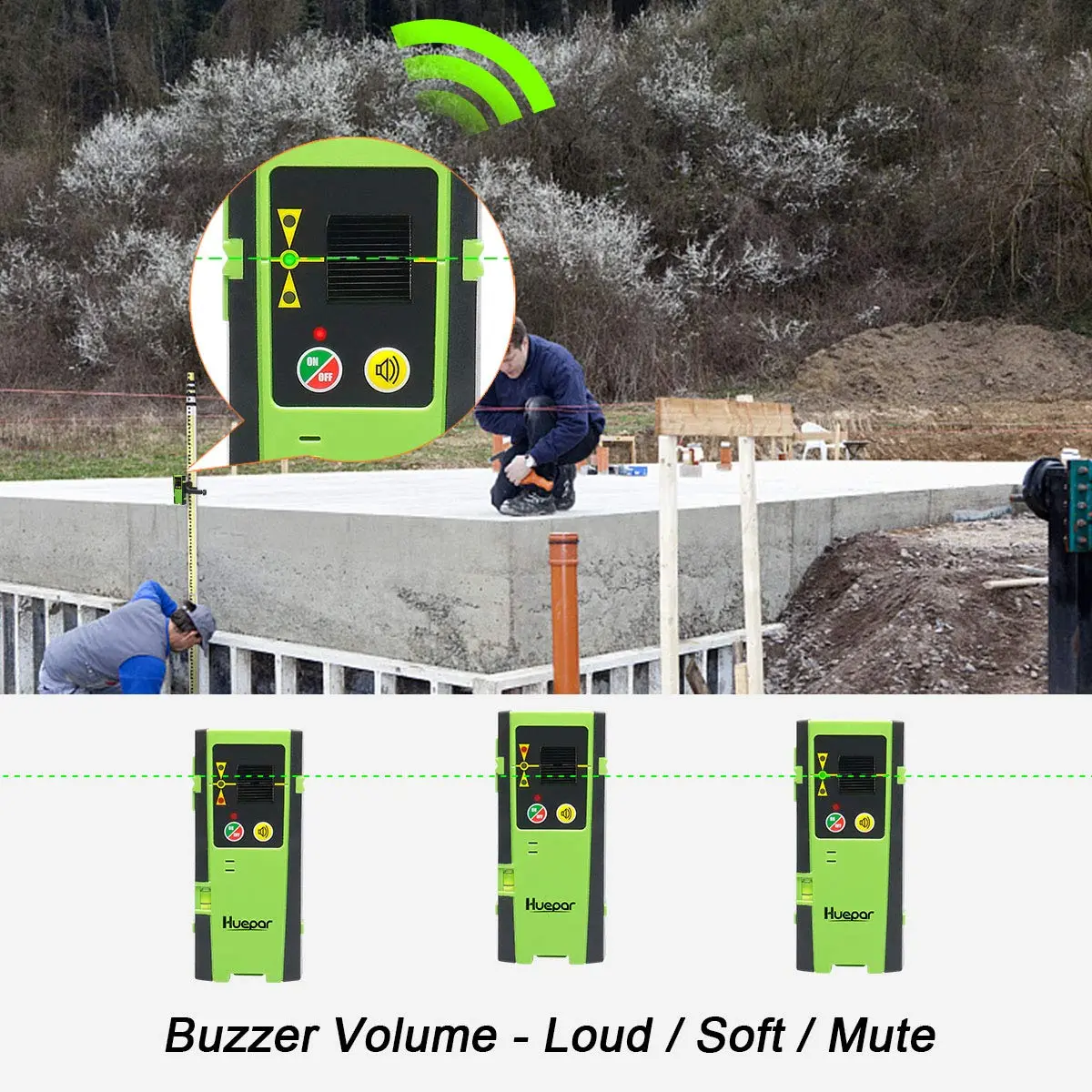

Buzzer Remind
A beeping tone signals that the laser beam has been detected:
* A slower beeping tone signals – Move Up
* A fast beeping tone signals – Move Down

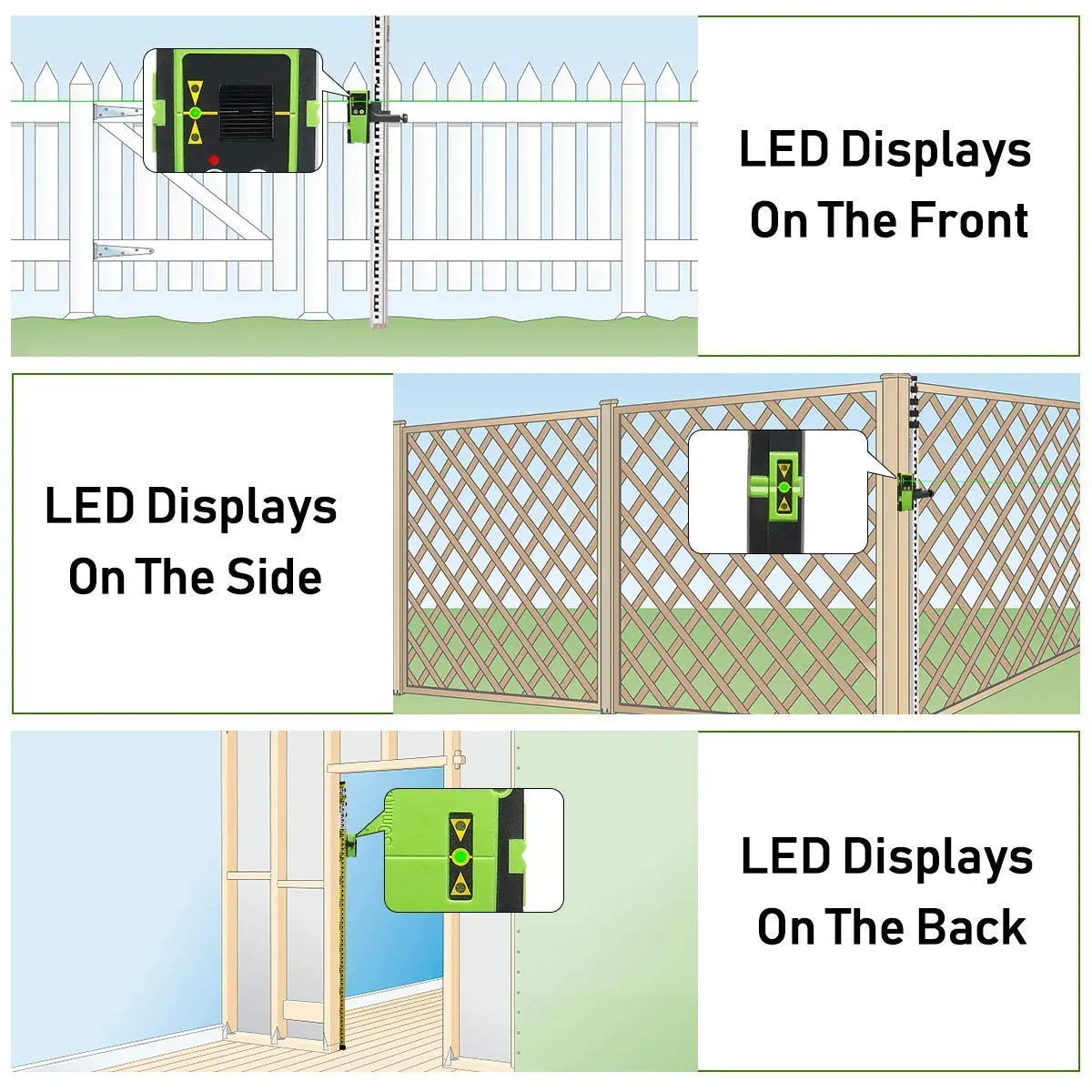

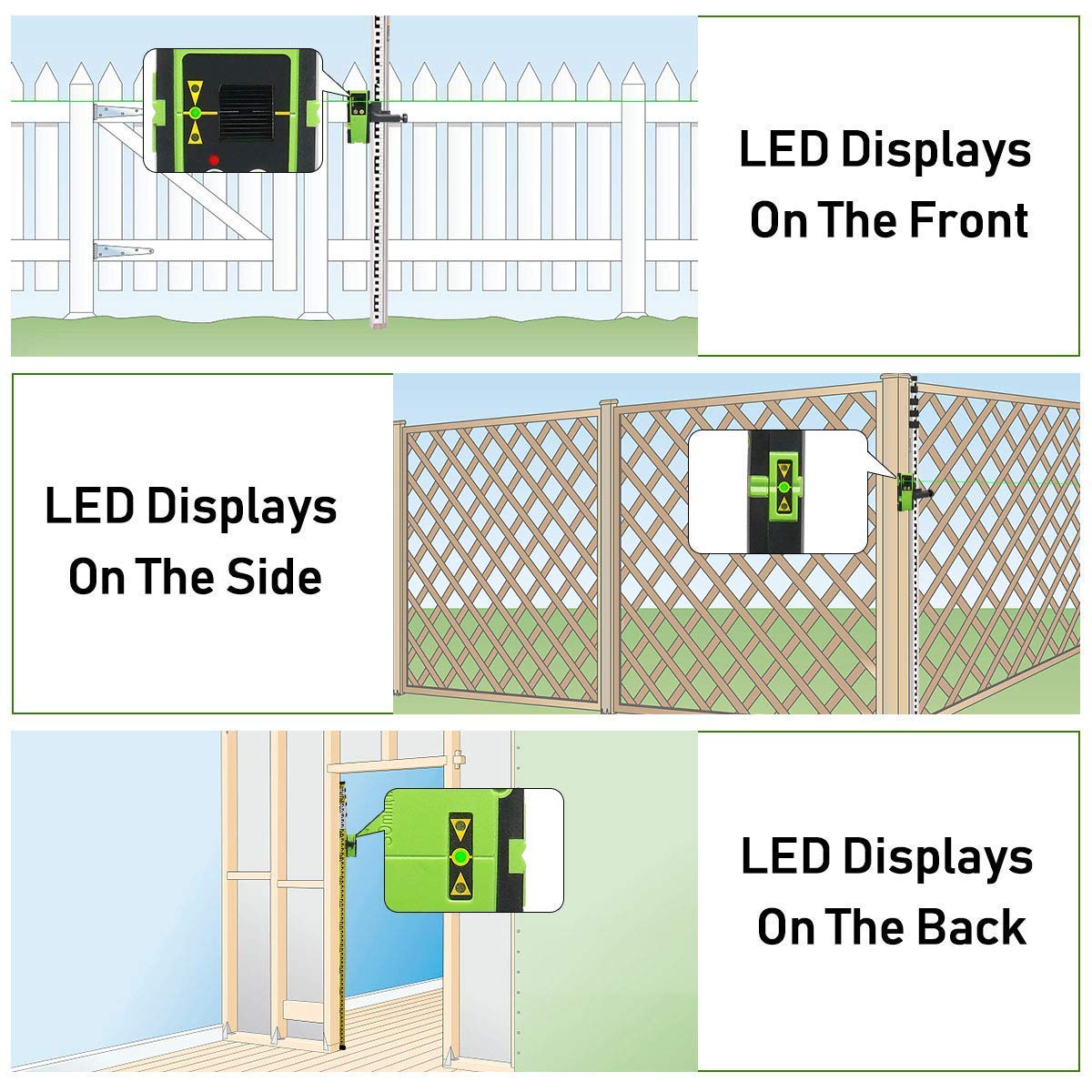

Clear multi-sided readouts
Three-Sided LED Displays, provide clear LED signal prompts on three sides
* LED displays on the front
* LED displays on the side
* LED displays on the back

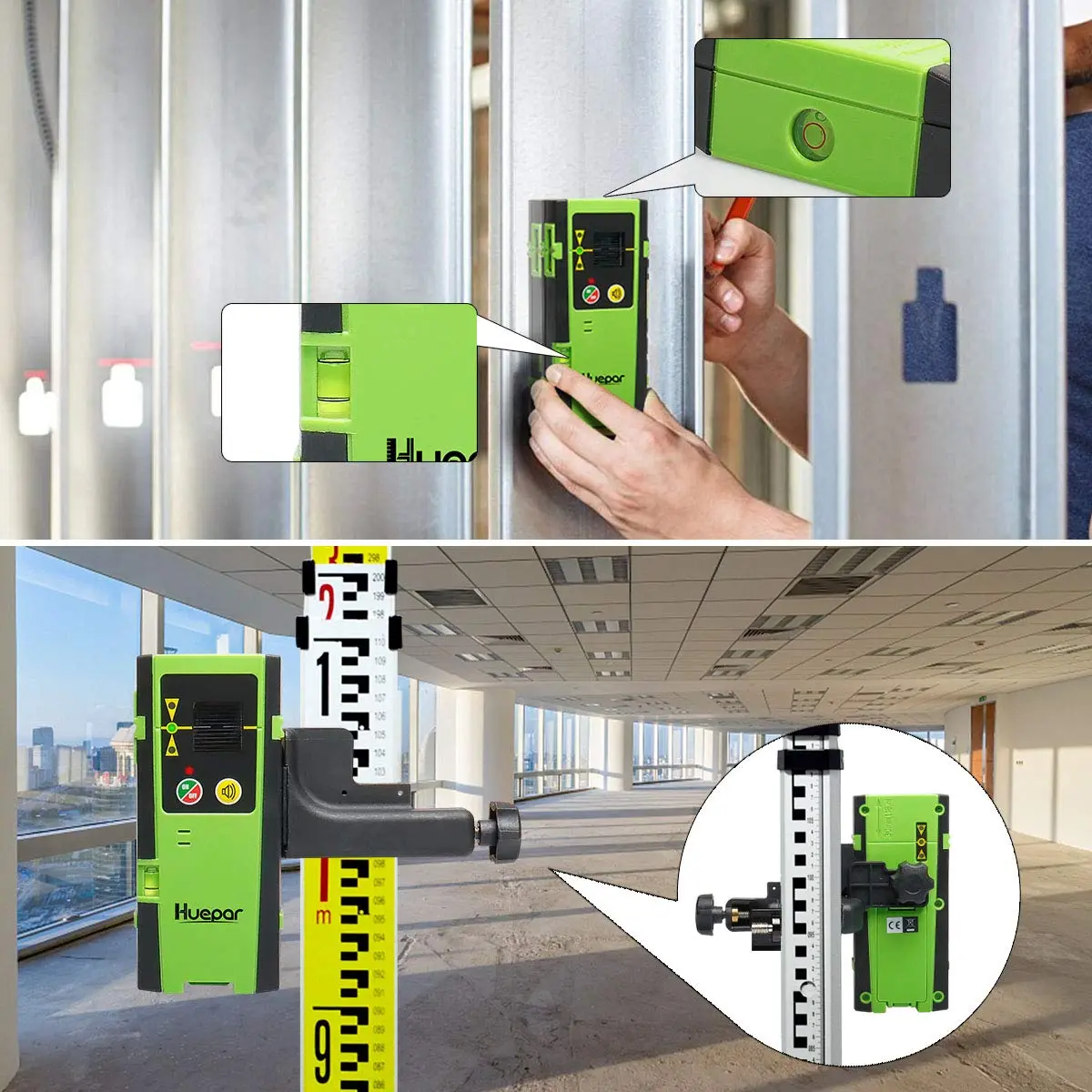

Built-in Bubble and Holder
LR-6RG Laser Detector comes complete with a compatible rod mounting bracket. The built-in bubble level provides an extra measure
of leveling accuracy.
