Combining the efforts of all our staff and keeping up with the trend, ZHUHAI XiaoSmart OPTOELECTRONICS TECHNOLOGY CO.,LTD has developed the version of Huepar LR-5RG Two-Sided Back-lit LCD Display Detector for Pulsing Line Lasers,Red and Green Beams Laser Level Receiver . It is borne with the updated features and is expected to create values and benefits for customers. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like Laser Distance Meters requiring very high quality. In order to be able to successfully meet the challenges,ZHUHAI WUKON OPTOELECTRONICS TECHNOLOGY CO.,LTD will continue to forge ahead on the road of technological innovation. In addition, it will also work hard to analyze the changing needs of the market and create better products for customers according to their needs.

Product Description

Please note NOT compatible with Rotary Laser Level.



Please be aware that this item is compatible with pulse induction laser levels only.
This laser receiver can NOT be used for Huepar 9011G/9211G/FL360R/FL360G/8300G.
If you are not sure whether it suits for your laser tool, please confirm with us before you place an order.
Laser Class: Class 2 (IEC/EN60825-1/2014) <1mW power output.

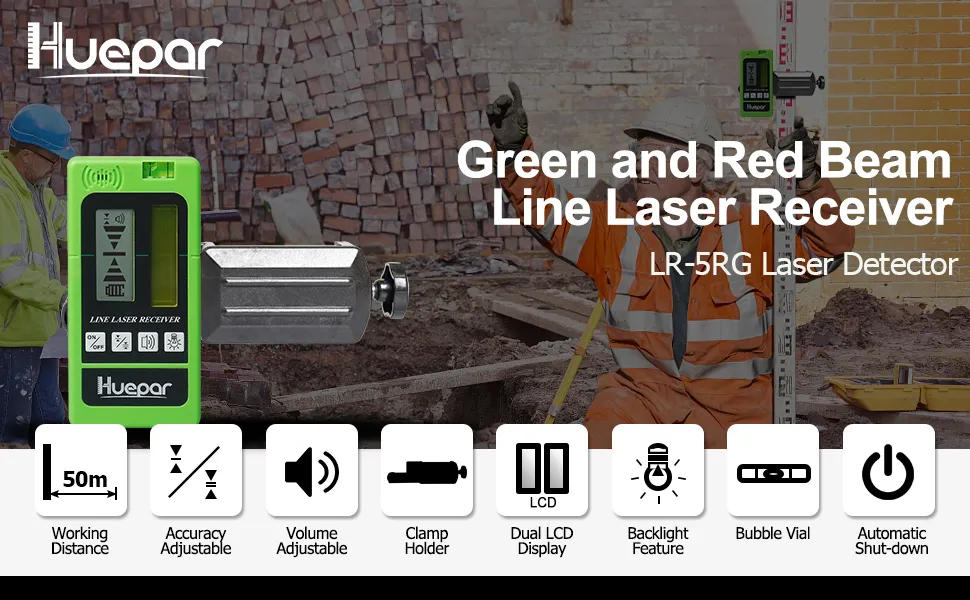

LR-5RG Laser Detector Specifications:

* Pulse duration: 50 μs ; PWM: 5:5 * Frequency: 10KHz (Matched PWM and frequency, Line lasers can work with LR-5RG Laser Receiver) * Display: Dual LCD Display * Leveling Accuracy (High): ≤2mm(1/13in) * Leveling Accuracy (Low): ≤3mm(1/9in) * Working Distance: 130ft~200ft (typical) depend on light source * Operating Time: 20 hours; Auto Power Off (with No Signal Detected): 10min * Power Source: 2*AA Batteries (Alkaline) * Dimension (LxWxH): 140mm×68mm×26mm; Weight: 140g

LR-5RG Laser Detector Features:

✔️HUEPAR DEDICATED RECEIVER- Huepar LR-5RG receiver can ONLY use with Huepar Line Laser Level. Please note can NOT be used for Rotary Laser Level. Recommended for use in accompanied with Huepar 902CG/901CG/8211G/BOX-1G/BOX-1R/GF360G/GF360R/622CG/622CR/621CG/621CR/603CG/603CR/602CG/602CR/DT03/904DG/903DG/B03CG/B02CG/B21CG/503CG/503DG Laser Level. * ⭐【AVAILABLE FOR RED AND GREEN PULSE LASER】- Turn on the Pulse Mode of the Laser Level, then Huepar LR-5RG laser receiver allows detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200 feet. * ⭐【Large Reception Window & Dual LCD Display】- Large reception window of 2 inches and optical and acoustic signals help to locate the laser plane quickly and accurately. Dual LCD displays for easy visual readout on both sides of the receiver. LCD backlight provides a clear look even in low light conditions. Adjust the height until the horizontal datum line and the arrow disappear on the LCD display. * ⭐【PRECISE OPTICAL AND ACOUSTIC SIGNALS】- This laser receiver features a user-friendly interface and is smart in its simple design. Optical and acoustic signals help to locate the laser plane quickly and accurately. The LED indicator provides a clear and accurate signal. Beep sounds will remind you when you find the target. * ⭐【LONG BATTERY LIFE AND CLAMP HOLDER】- The receiver comes with 2 x AA battery, providing you with about 20 working hours. There is also an automatic shut-off feature that power down the device after about 10 minutes of being idle to extend battery life. The attached heavy-duty clamp makes it easy to mount the detector to a rod or other target point.



Using Tips

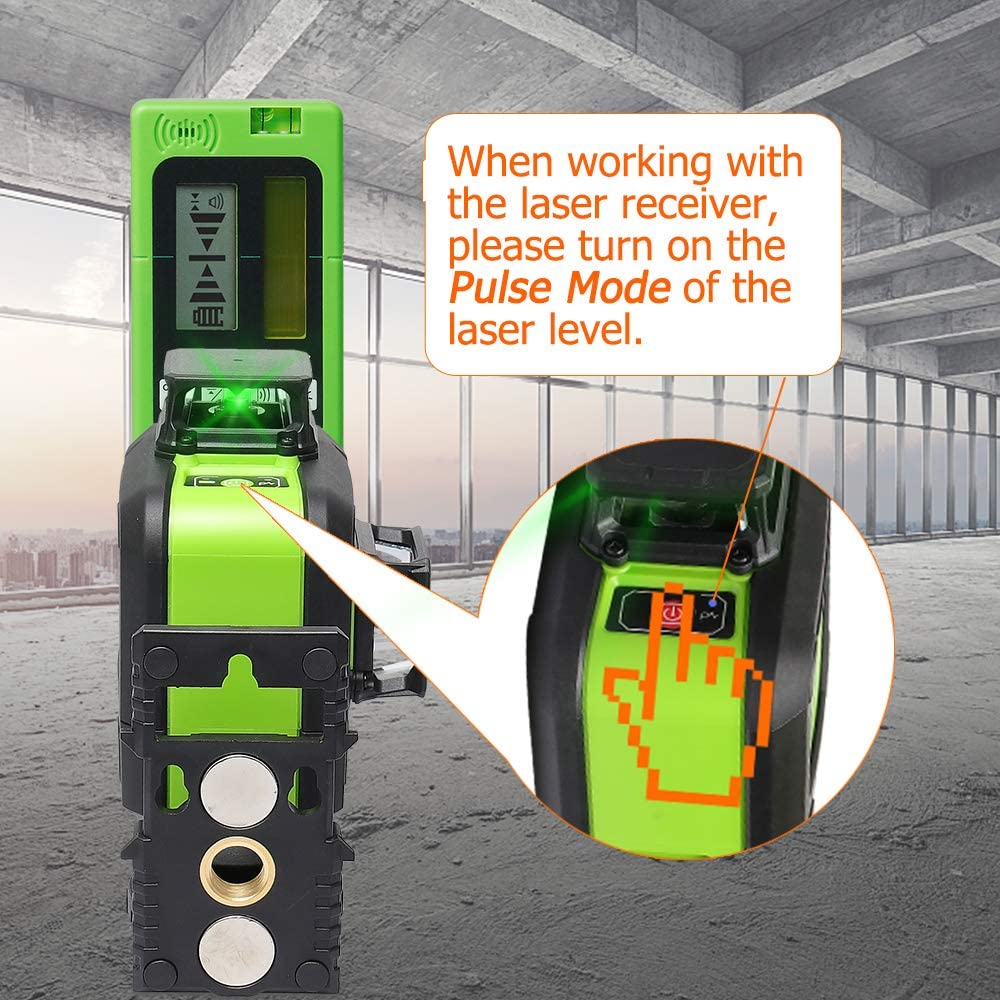

● Put the laser level in Pulse (Outdoor) Mode.
● Made sure the laser level and the Receiver windows were clean.
● Recheck the batteries in both devices (Laser level & Huepar Laser Receiver).
● Made sure your laser level could used in accompanied with Huepar Receiver.

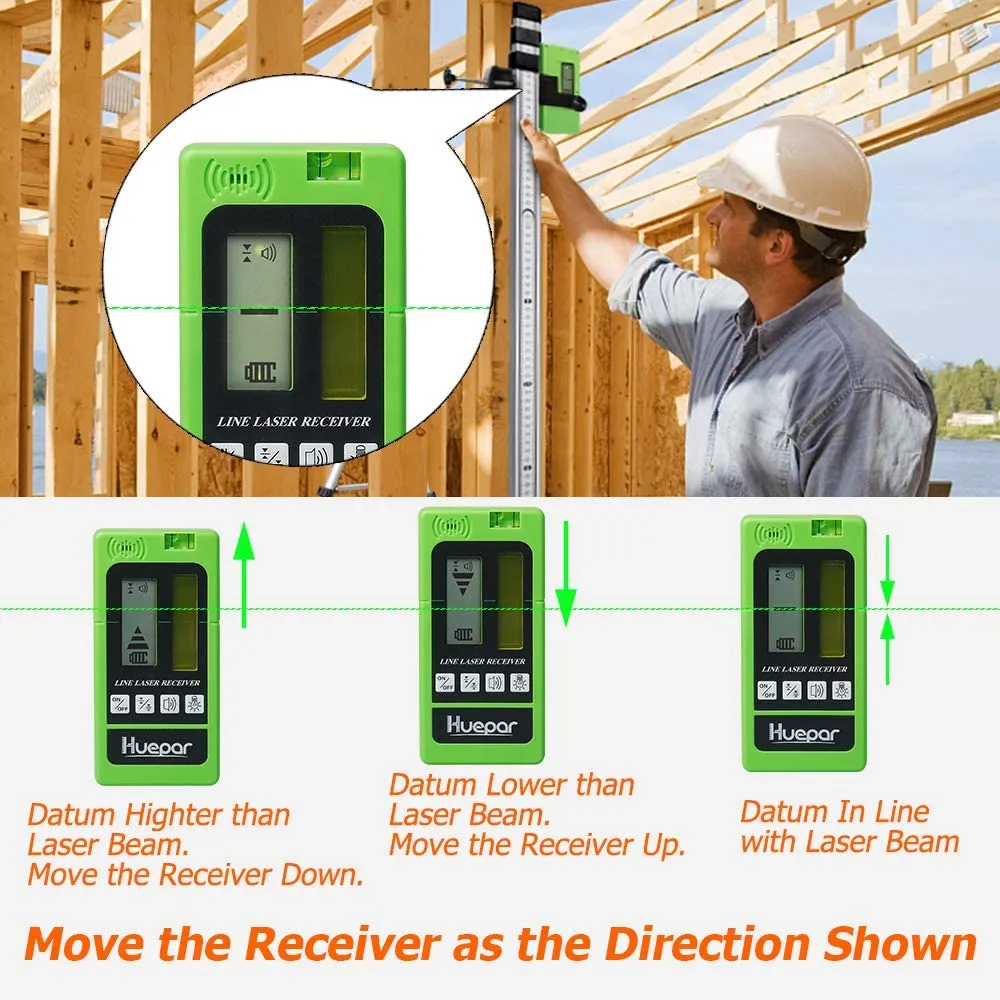

LCD Icons

Move the Detector as the Direction Shown:
● Datum Lower than Laser Beam – Move Up
● Datum Higher than Laser Beam – Move Down
● When Datum in Line with Laser Beam – The Direction becomes a Line

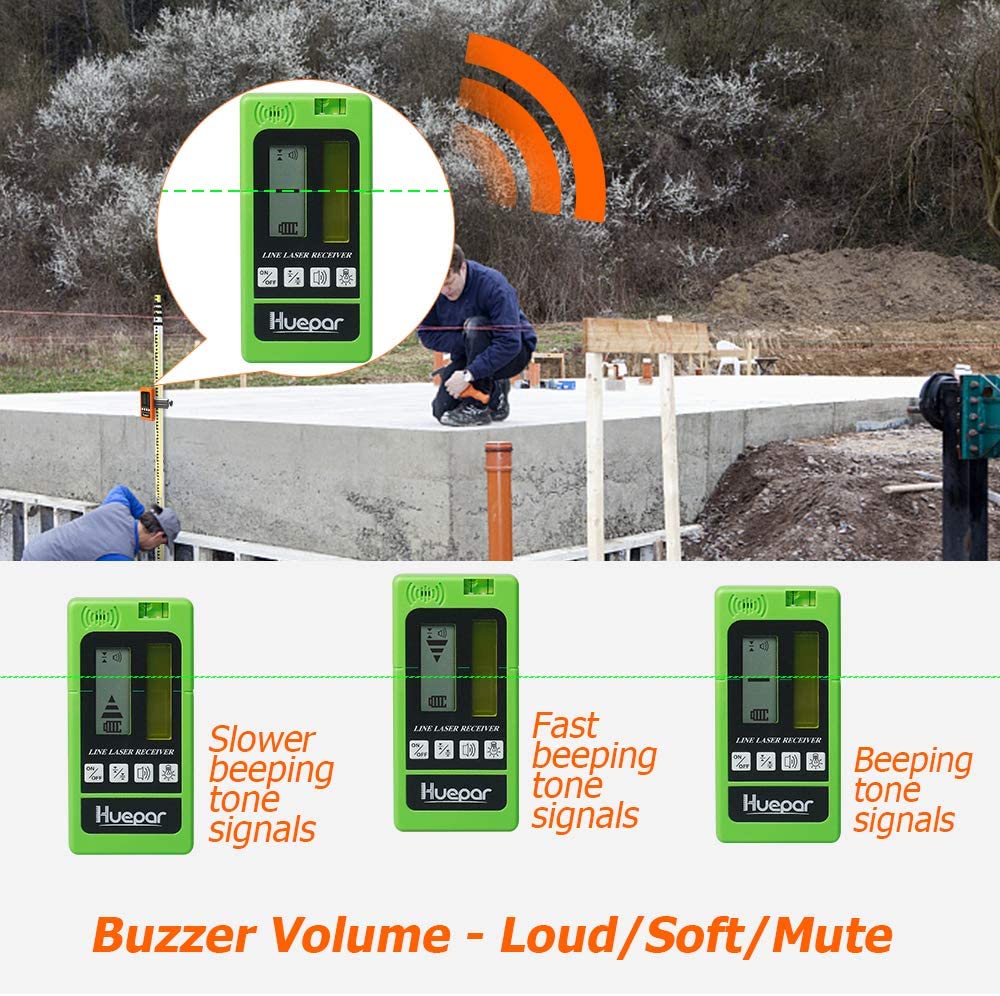

Buzzer Remind

A beeping tone signals that the laser beam has been detected:

● A slower beeping tone signals – Move Up

● A fast beeping tone signals – Move Down
Can toggle through the volume, or turn on Mute.

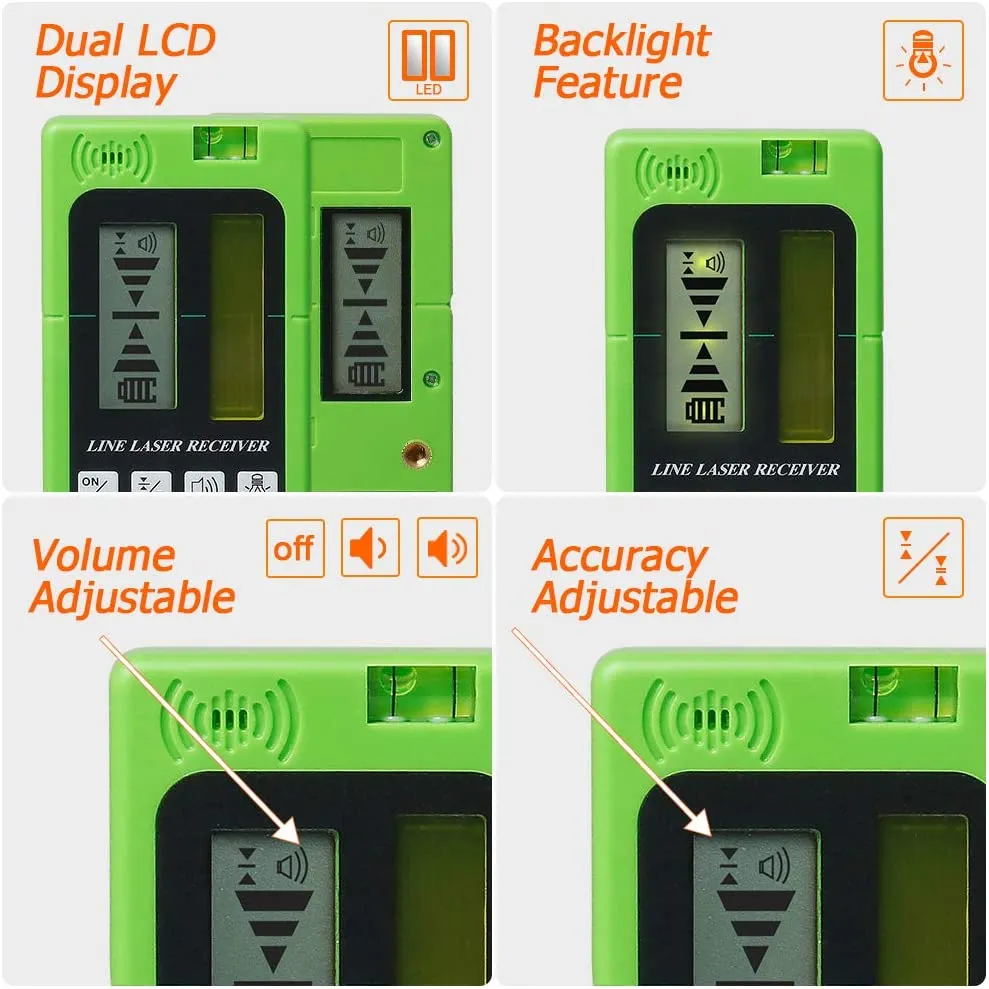

Humanized Function
It boasts a dual-sided LCD display, backlight and battery status. Can toggle through the volume and accuracy. While the accuracy
mode allows you to switch between HIGH and LOW.

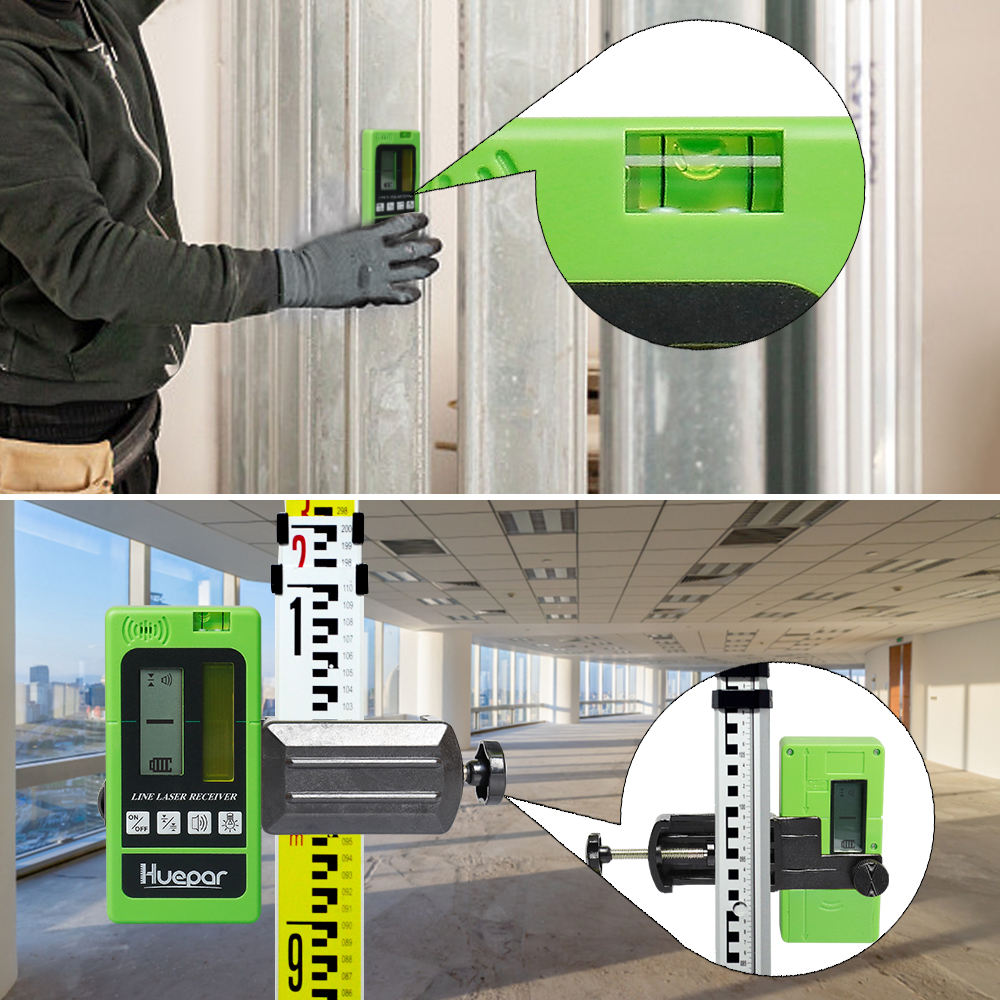

Built-in Bubble and Holder
LR-5RG Laser Detector comes complete with a compatible rod mounting bracket.
A built-in bubble level provides an extra measure of leveling accuracy.

High Quality
Robust and built tough to last, the detector is durably constructed with a hard plastic housing and rubber casing for long-term
use, as well as protection against wet weather conditions when working outdoors.
